CHAIN ACTUATOR C130

Elegant Design and Precision for Top and Bottom Hung Windows

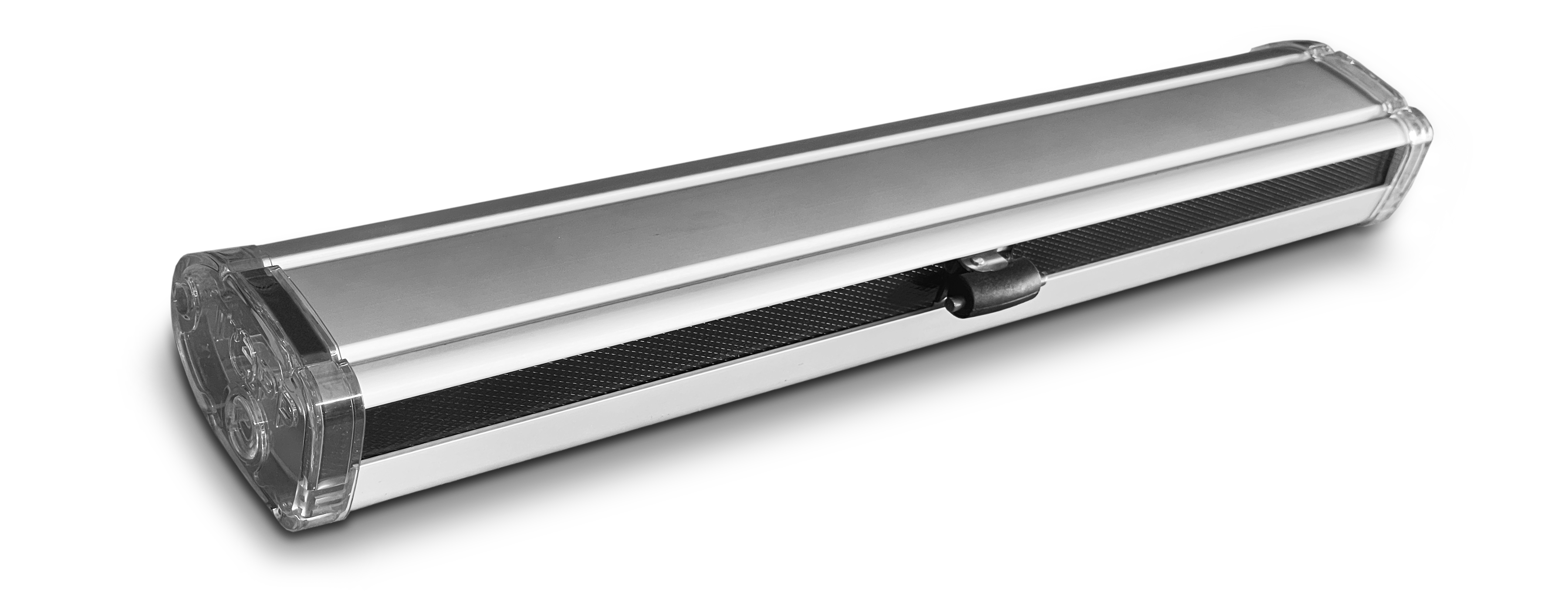

The TOPP C130 is a high-performance electric actuator featuring a double-link articulated chain enclosed in a refined die-cast aluminium profile. Designed for top-hung and bottom-hung window automation, it offers a clean and modern appearance ideal for architectural applications.

Operating at 230V~ 50Hz or optionally 24V DC, the C130 delivers a maximum thrust force of 300N and a stroke of up to 360 mm. The actuator is available in custom profile lengths ranging from 600 mm to 1200 mm, ensuring a perfect fit with different window frame widths.

Equipped with a fast hooking and unhooking system, the actuator simplifies installation and maintenance. An electronic stroke-end device using amperometric absorption guarantees precise closing and protection. Cable outlets are available on both sides for flexible integration.

Key Features – TOPP C130

• 🔹 Double-link chain in a sleek die-cast aluminium profile
• 🔹 Custom profile lengths: 600 mm – 1200 mm
• 🔹 Max. stroke: 360 mm
• 🔹 Max. thrust force: 300 N
• 🔹 Voltage: 230V~ 50Hz or 24V DC
• 🔹 Fast hooking/unhooking mechanism
• 🔹 Amperometric closing stroke-end for safe operation
• 🔹 Cable exit on both sides for flexible installation
• 🔹 Elegant and modern aesthetic
• 🔹 CE marked
• 🔹 Colour options: white, black, grey

Applications

• 🔹 Residential and commercial window automation
• 🔹 Architectural façade windows
• 🔹 Natural ventilation in smart buildings
• 🔹 Integration with BMS and automated control systems
