CHAIN ACTUATOR C15

Smart and Reliable Solution for Natural Ventilation

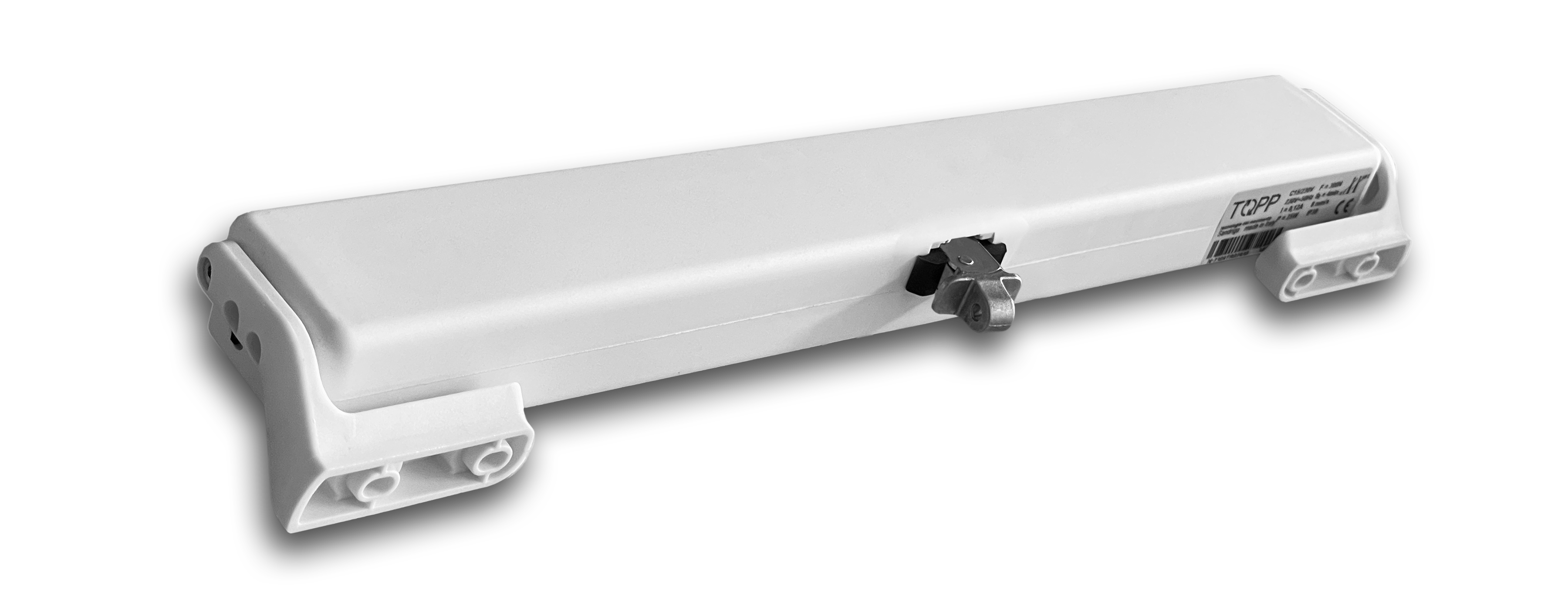

The TOPP C15 is a compact electric chain actuator designed for automating top-hung, bottom-hung, and pivot windows. With a selectable stroke of 120 mm or 240 mm, this actuator offers exceptional versatility in both residential and commercial applications. Its discreet housing allows for seamless integration into modern architectural designs.

Available in 230V AC and 24V DC versions, the C15 is ideal for integration with smart building systems, including BMS and IoT networks. Despite its small size, it delivers robust performance with a maximum force of 300 N (push) and 200 N (pull).

Choose from four standard finishes: white, black, grey, and brown, for a consistent aesthetic across all window types.

Key Advantages

• 🔹 Compact and elegant design for discreet installations
• 🔹 Adjustable stroke: 120 mm or 240 mm
• 🔹 Suitable for top-hung, bottom-hung, and pivot windows
• 🔹 Force: 300 N push / 200 N pull
• 🔹 Available in 24V DC and 230V~50Hz versions
• 🔹 Easy to integrate into BMS and natural ventilation systems

Need Help?

Use the form below to ask about product availability, technical compatibility or receive a custom configuration for the TOPP C15 actuator. Our team is here to support your project needs.
