CHAIN ACTUATOR C160
Elegant Window Automation with Long-Stroke Performance

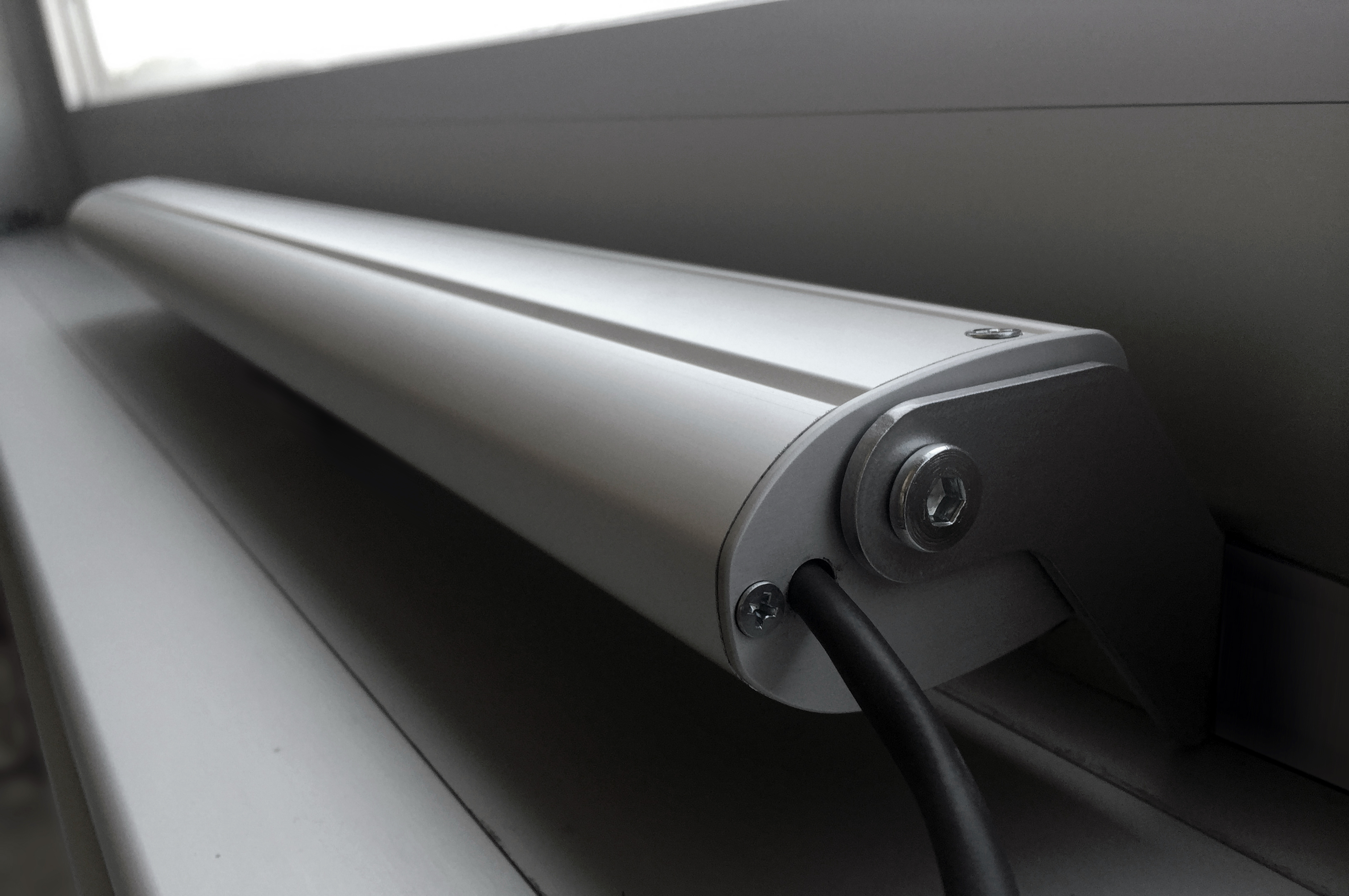

The TOPP C160 electric actuator is designed for modern window automation where extended stroke and compact housing are essential. Featuring a double-link articulated chain enclosed in a refined die-cast aluminium profile, it combines strength, versatility, and aesthetic design.
With a maximum stroke of 1000 mm and a thrust force of 300N, the C160 is ideal for automating top-hung, bottom-hung, and side-hung windows. The actuator operates on 230V~ 50Hz and includes electronic stroke-end control in closing via current absorption for safe and precise performance.
Swivel brackets and mounting accessories ensure quick and flexible installation. The actuator’s slim form factor and elegant finish make it suitable for both residential and commercial applications. It is CE marked and engineered for reliability and durability.
Key Features – TOPP C160
- 🔹 Double-link articulated chain enclosed in aluminium housing
- 🔹 Max. stroke: 360 / 600 / 1000 mm
- 🔹 Max. thrust force: 300 N
- 🔹 Operation: 230V~ 50Hz

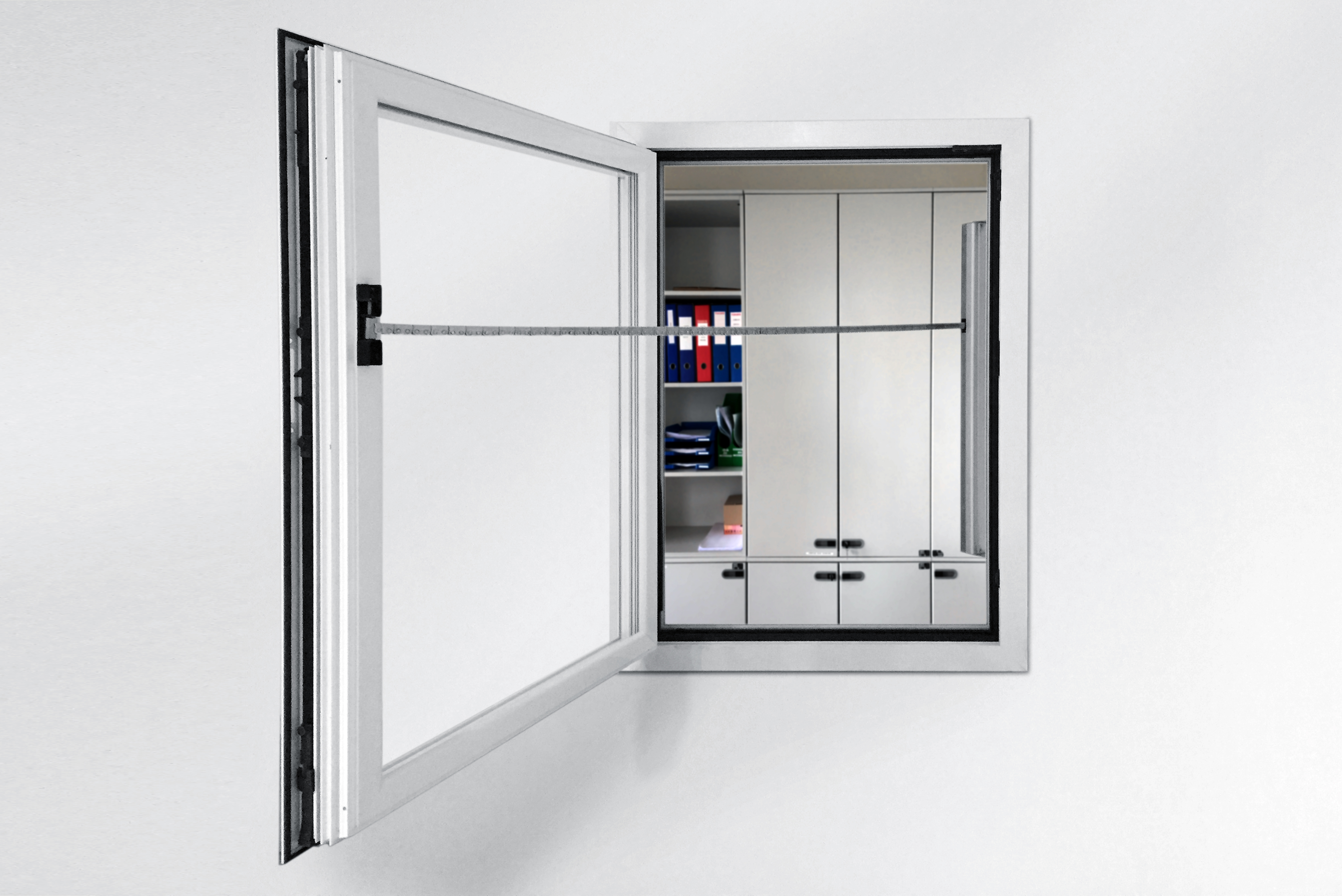

- 🔹 Suitable for top, bottom, and side-hung windows
- 🔹 Electronic stroke-end in closing (amperometric)
- 🔹 Slim and elegant die-cast aluminium profile
- 🔹 Swivel brackets for easy installation
- 🔹 CE certified
- 🔹 Colour options: White, Black, Grey
Applications
- 🔹 Residential and commercial window automation
- 🔹 Natural ventilation systems
- 🔹 Architectural facades with long-opening windows
- 🔹 Projects requiring extended stroke in limited space
Need Help?
Use the form below to request product availability, technical assistance, or a custom configuration for the TOPP C160. Our team is ready to support your automation project.
Technical Specifications – TOPP C160 Chain Actuator
| Technical Characteristics | C160 Stroke 360 mm | C160 Stroke 600 mm | C160 Stroke 1000 mm |
| Power voltage | 230V~50Hz | 230V~50Hz | 230V~50Hz |
| Max applicable load in thrust | 300 N | 250 N | 50 N |
| Max applicable load in traction | 200 N | 200 N | 200 N |
| Stroke for top-hung application | 360 mm | 600 mm | 1000 mm |
| Stroke for bottom-hung application | 322 mm | 562 mm | 962 mm |
| Absorbed current | 0,12 A | 0,14 A | 0,14 A |
| Idle translation speed | 8 mm/s | 8 mm/s | 8 mm/s |
| Duration of the idle stroke | 45 s | 75 s | 125 s |
| Double electrical insulation | yes | yes | yes |
| Service type | S2 4min | S2 4 min | S2 4min |
| Operating temperature (°C) | -5° + 50° | -5° + 50° | -5° + 50° |
| Protection Class | IP 30 | IP 30 | IP 30 |
| Window mounting adjustment | automatic | automatic | automatic |
| Parallel connection option | yes | yes | yes |
| Possibility of installing double push point on the same window | yes | no | no |
| Stroke end | Electronic in opening, by amperometric absorption in closing | Electronic in opening, by amperometric absorption in closing | Electronic in opening, by amperometric absorption in closing |
