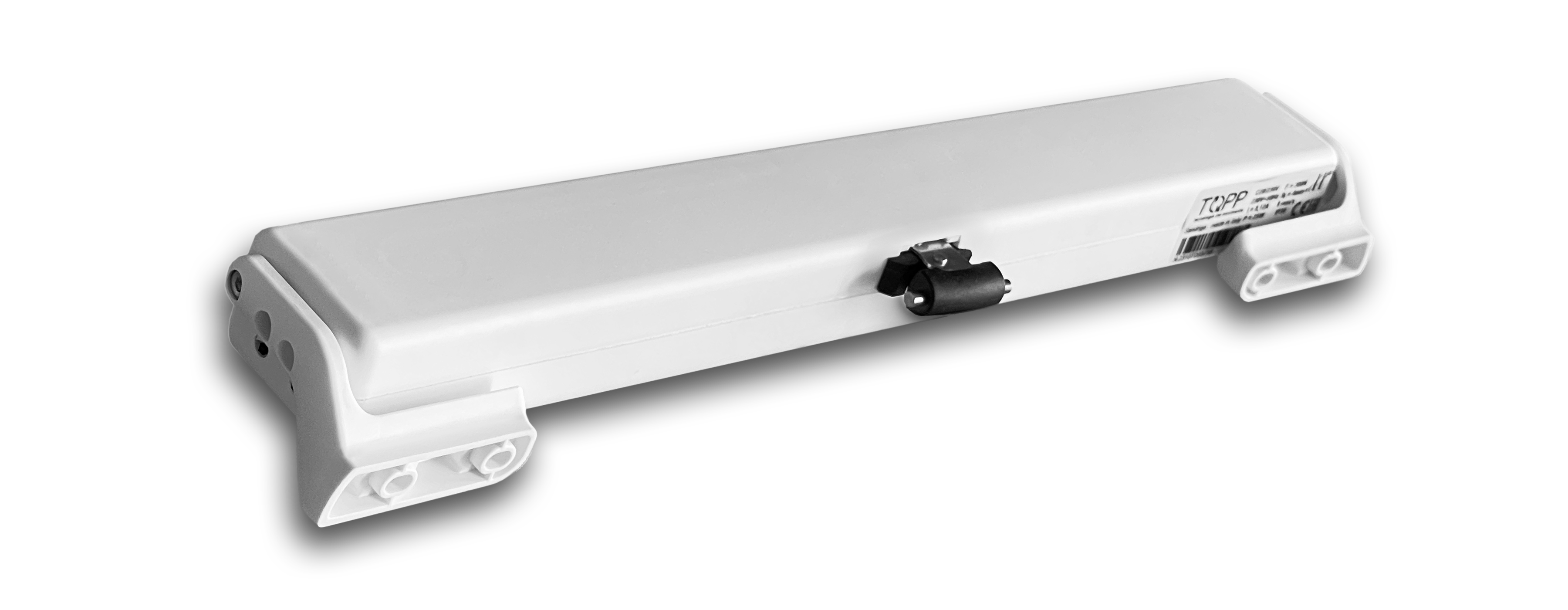

CHAIN ACTUATOR C20
Compact and Versatile Chain Actuator for Smart Ventilation
The TOPP C20 is a reliable chain actuator designed for automating top-hung and bottom-hung windows in both residential and commercial buildings. With a selectable stroke of 240 mm or 360 mm, it allows for flexible ventilation control and seamless integration with automation systems.
The actuator features a slim and compact design, making it easy to install in narrow frames while maintaining aesthetic integrity. Available in 24V DC or 230V AC versions, the C20 is suitable for a variety of control scenarios, including natural ventilation and centralized systems.
With a pushing force of up to 300 N and silent, smooth operation, it’s ideal for offices, schools, and public buildings prioritizing air quality and comfort.
Key Advantages
- 🔹 Double link chain with very high resistance on heavy loads
- 🔹 Stroke-end by amperometric absorption in closing to avoid chain adjustments in closing
- 🔹 Adjustable stroke: 240 mm or 360 mm
- 🔹 High-performance motor with 300 N push / 200 N pull force
- 🔹 Compatible with BMS and intelligent control systems
- 🔹 Compact body – suitable for slim window profiles
- 🔹 Supports natural ventilation in modern architecture
- 🔹 Available in 24V DC and 230V AC power supply options
Need Help?
Use the form below to ask about product availability, technical compatibility or receive a custom configuration for the TOPP C20 actuator. Our team is here to support your project needs.
