CHAIN ACTUATOR C30

Reliable and Versatile Chain Actuator for Modern Installations

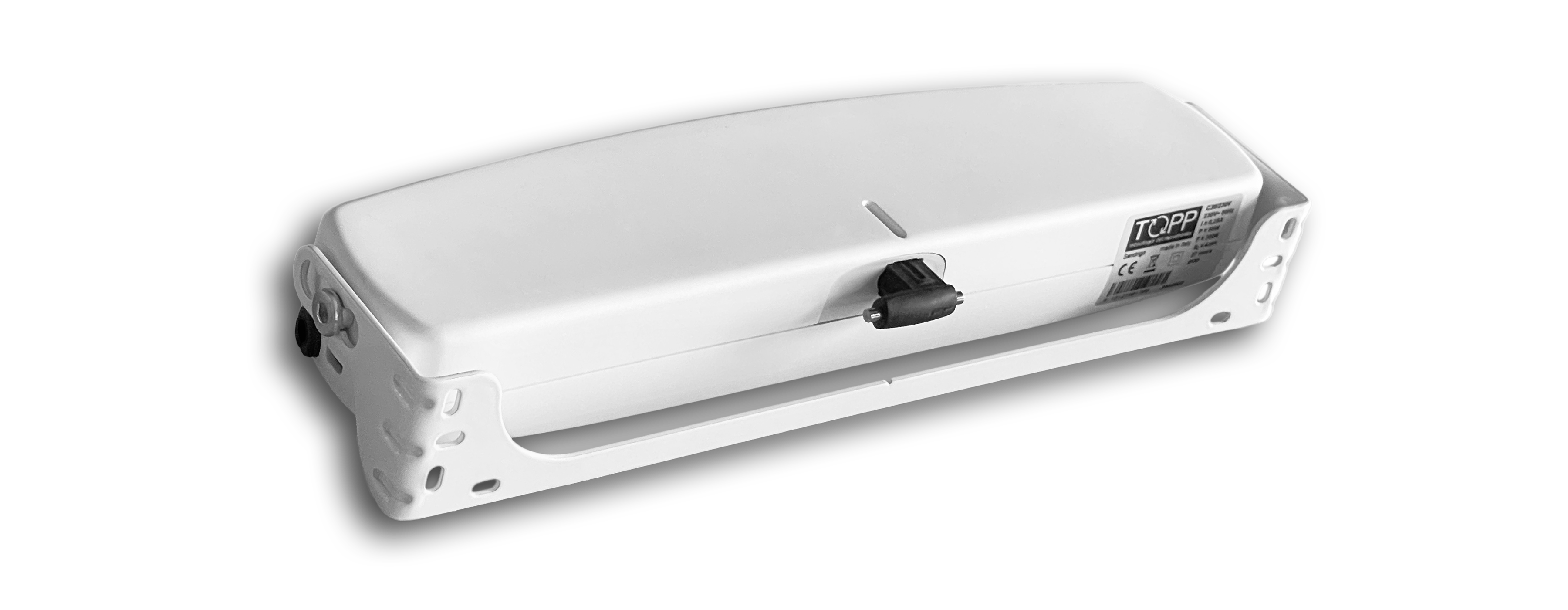

The TOPP C30 is a compact electric chain actuator designed for automating bottom-hung and top-hung windows. With selectable strokes of 200 mm or 380 mm, and a high operational force of up to 300 N, it delivers efficient and quiet performance in both residential and commercial applications.

Equipped with a double-link articulated chain, the actuator provides excellent durability and stability during motion. Available in both 230V~ 50Hz and 24V DC versions, it allows easy integration with traditional control systems and modern Building Management Systems (BMS).

Also available in a synchronous twin version (C30S) – ideal for wide or heavy windows requiring higher force and perfect coordination.

Key Features – TOPP C30

• 🔹 Selectable strokes: 200 mm or 380 mm
• 🔹 High operational force: up to 300 N (push) / 250 N (pull)
• 🔹 Double-link chain for enhanced motion stability
• 🔹 Automatic alignment with window profile
• 🔹 Compact dimensions and quiet operation
• 🔹 Acoustic warning for wrong installation (Buzzer)
• 🔹 Available in white, black, grey

Typical Applications

• 🔹 Natural ventilation in offices, schools, and public buildings
• 🔹 Window automation in residential installations
• 🔹 Compatible with BMS systems for smart control
