CHAIN ACTUATOR C50
Heavy-Duty Chain Actuator for Skylights and Large Windows

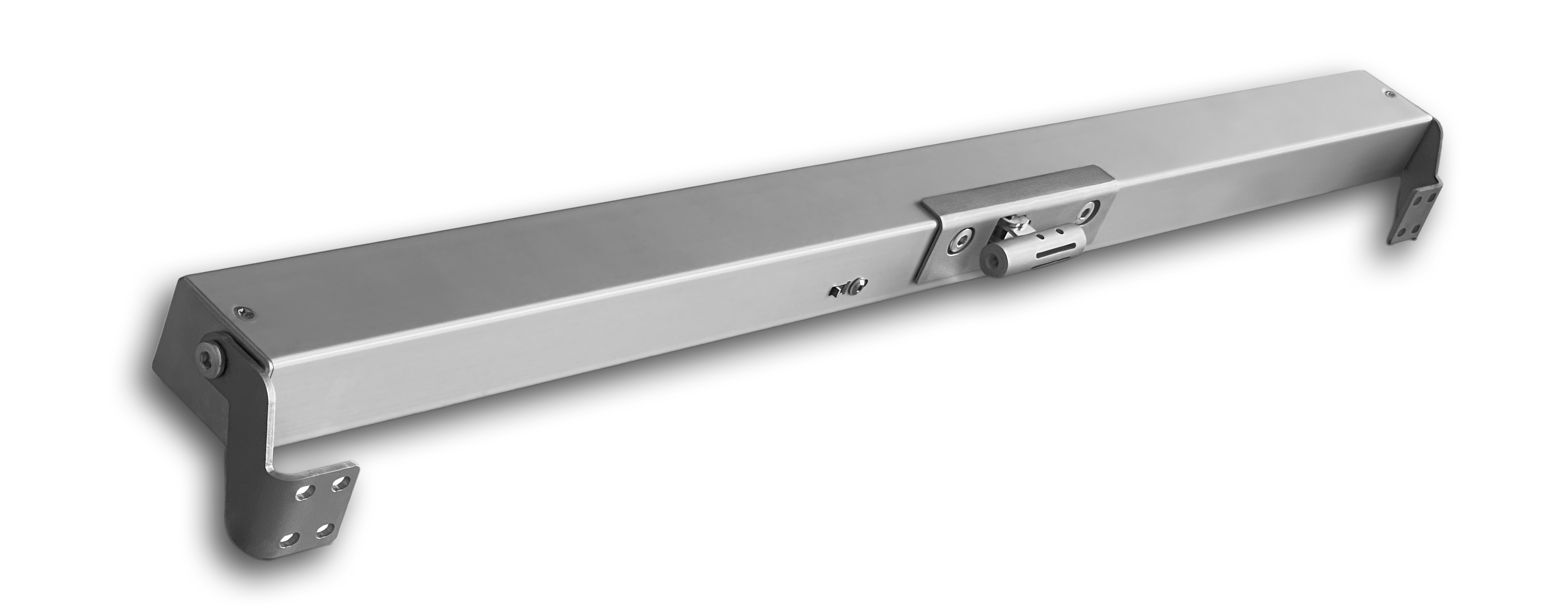

The TOPP C50 electric actuator is engineered for automating skylights, bottom-hung, and top-hung windows, especially where high loads and long strokes are required. It features a double-link chain housed in an aluminum profile and offers stroke lengths of 600, 800, and 1000 mm.
With a maximum thrust force of 500 N and operation at 230V~ 50Hz, the C50 ensures powerful and reliable actuation for large window systems. It includes a patented chain terminal with double lateral fixing and ±2° swiveling, which enhances resistance to dynamic loads and deformation.
The actuator's die-cast aluminum gearbox with ball-bearing-supported shaft provides increased durability. A patented chain load adjustment system allows fine-tuning for optimized performance under high loads and long stroke conditions.
Prepared for synchronous operation of two actuators on the same window, the C50 is ideal for architectural and industrial automation. It is CE marked and built to meet demanding environmental and functional requirements.
Key Features – TOPP C50
- 🔹 Max stroke options: 600 mm, 800 mm, 1000 mm
- 🔹 Max thrust force: 500 N
- 🔹 Voltage: 230V~ 50Hz

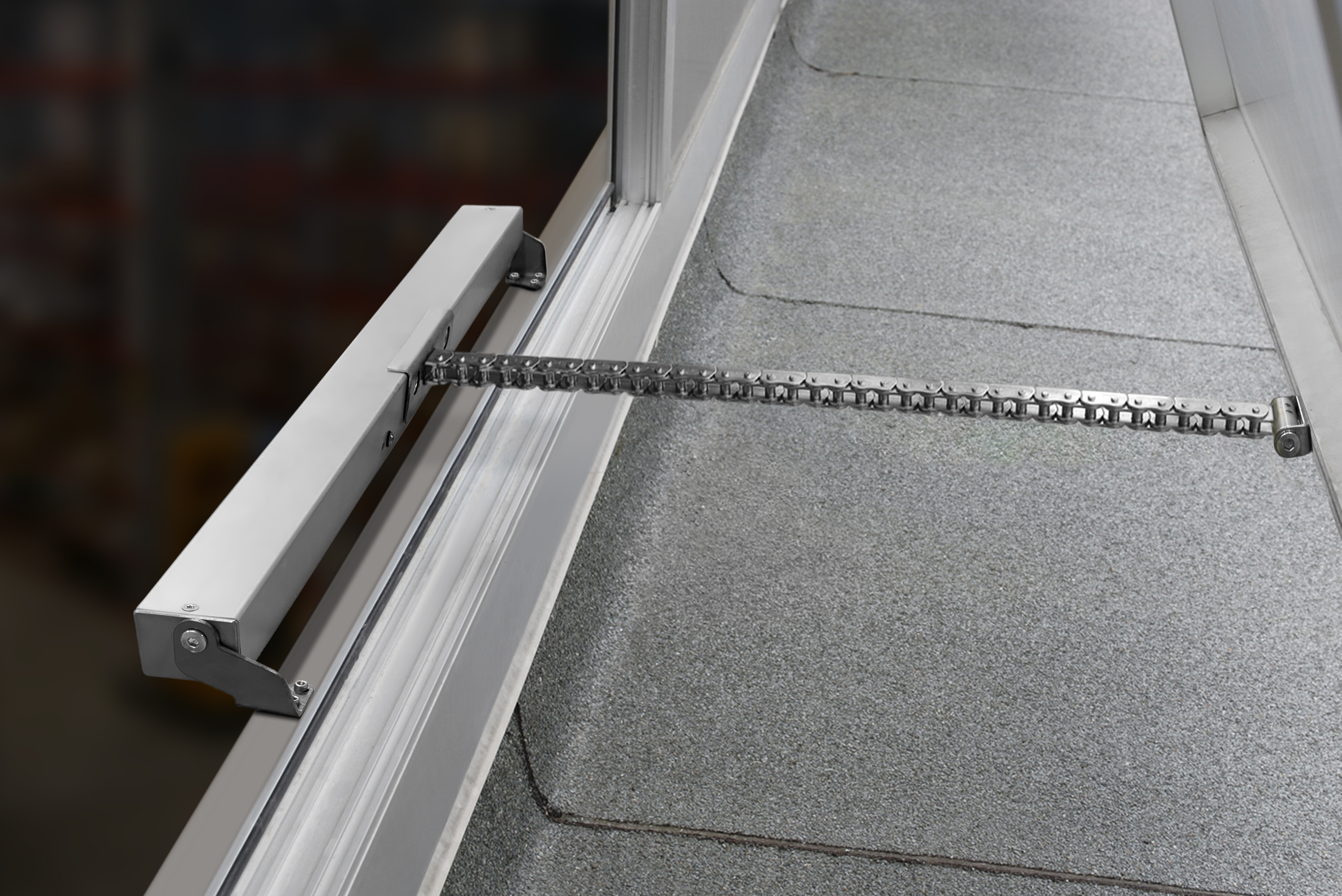

- 🔹 Double-link chain in aluminum profile
- 🔹 Patented chain terminal with ±2° swivel
- 🔹 Chain load adjustment system for heavy-duty resistance
- 🔹 Die-cast aluminum gearbox with ball bearings
- 🔹 Prepared for synchronous operation of two actuators
- 🔹 Color options: white, black, grey
- 🔹 CE marked
Applications
- 🔹 Large skylight automation

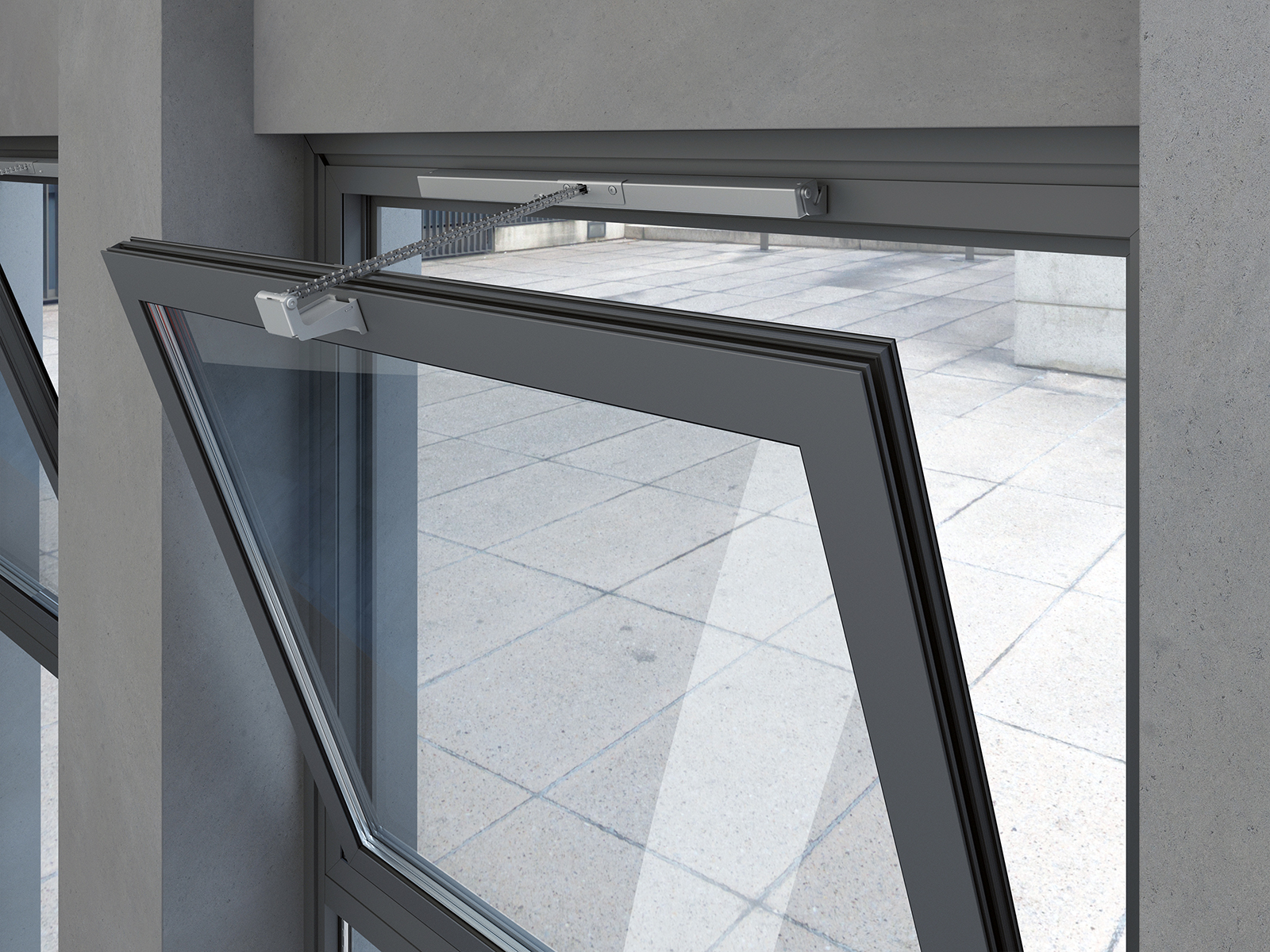

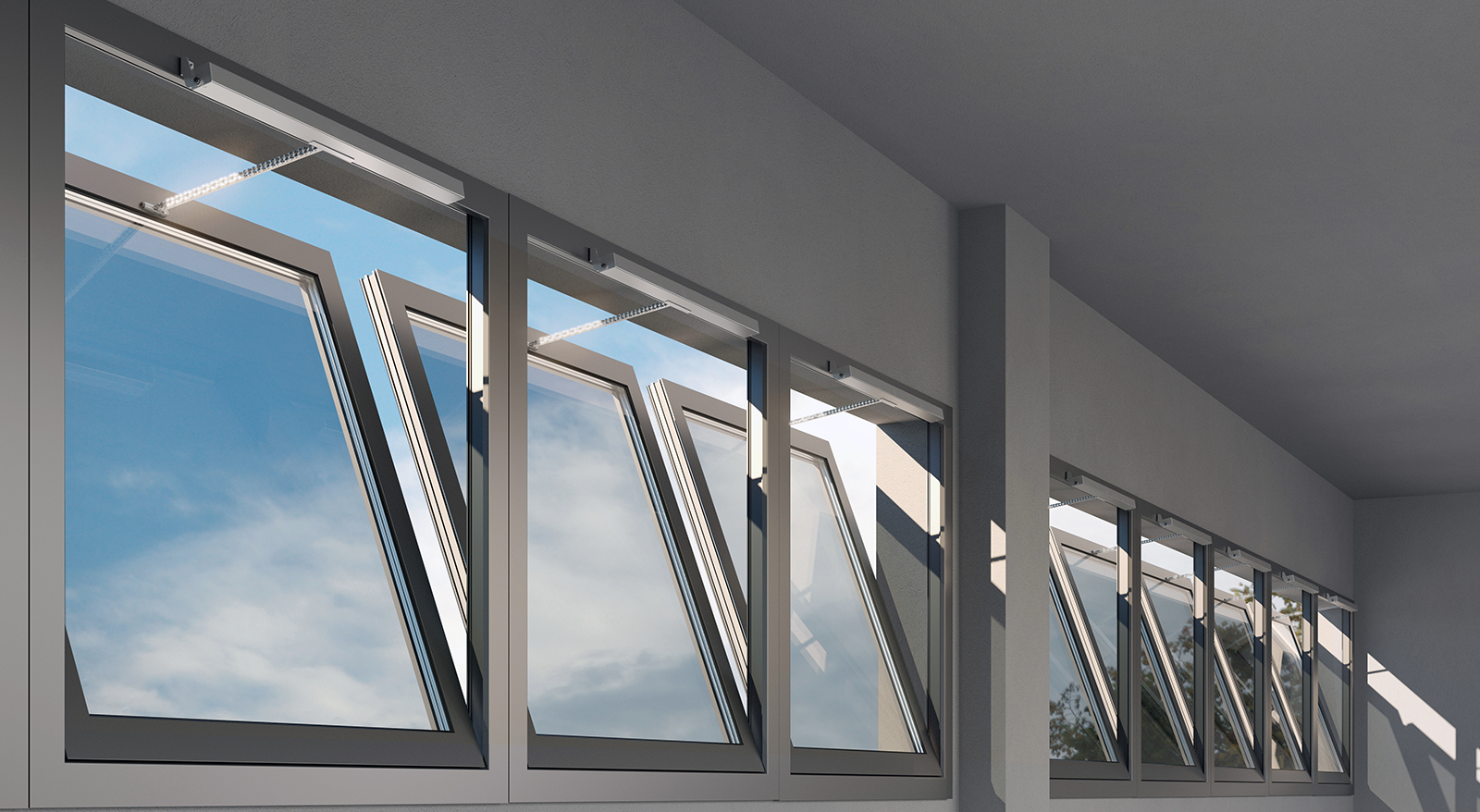

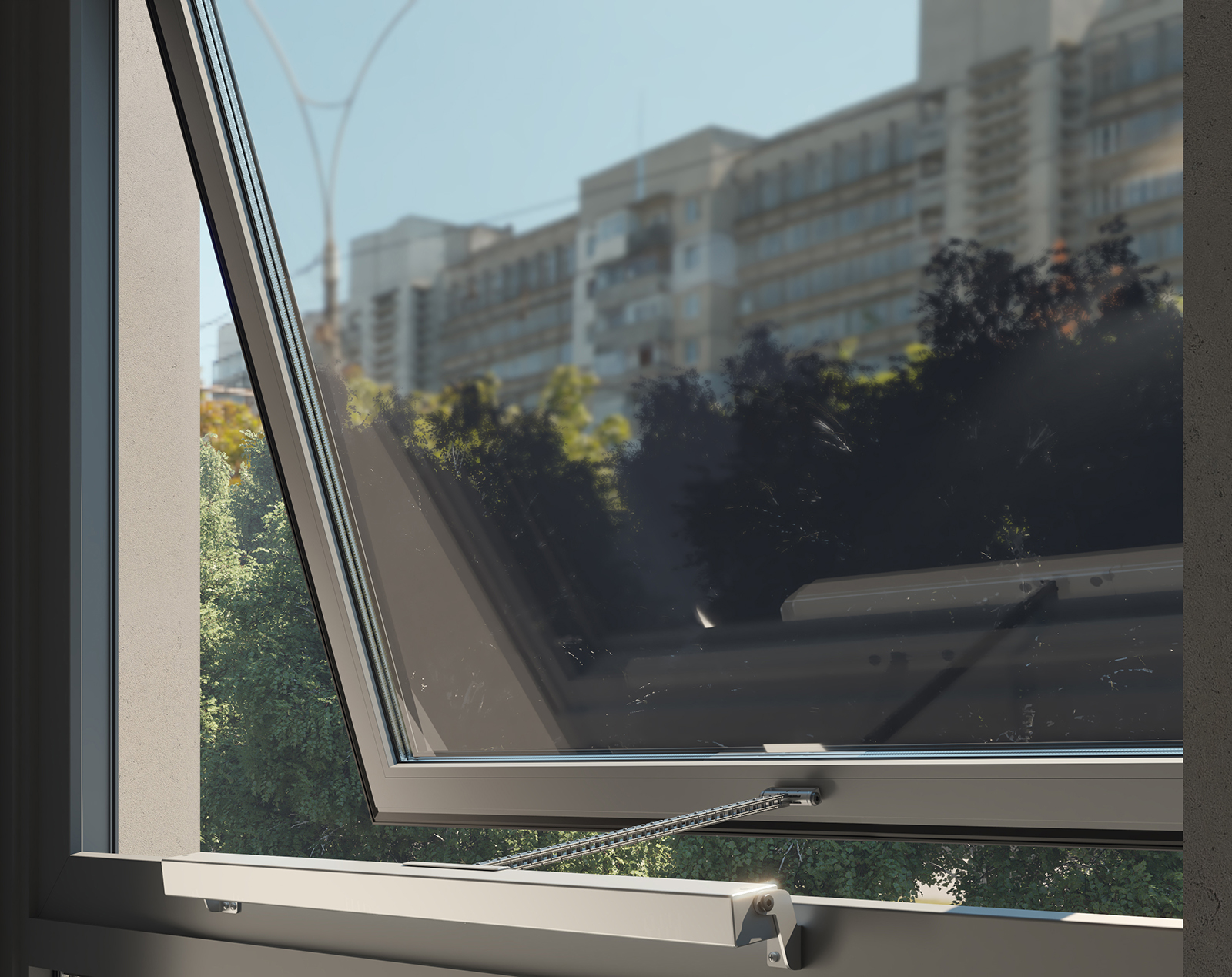

- 🔹 Top-hung and bottom-hung windows
- 🔹 Heavy façade windows
- 🔹 Industrial and commercial buildings
Need Help?
Use the form below to ask about product availability, compatibility, or request a tailored configuration of the TOPP C50 actuator. Our team is ready to support your window automation needs.
Technical Specifications – TOPP C50 Chain Actuator
|
Technical Characteristics |
C50 Stroke 600 mm |
C50 Stroke 800 mm |
C50 Stroke 1000 mm |
| Applications | Top hung, Skylight, Bottom hung | Top hung, Skylight, Bottom hung | Bottom hung |
| Power voltage | 230V ~ 50Hz | 230V ~ 50Hz | 230V ~ 50Hz |
| Max applicable load in thrust | 500 N | 300 N | - |
| Max applicable load in traction | 500 N | 500 N | 500 N |
| Stroke (+/-20mm) | 600 mm | 800 mm | 1000 mm |
| Absorbed current | 0.2 A | 0.2 A | 0.2 A |
| Idle translation speed opening | 9.6 mm/s |
9.6 mm/s (Top hung, Skylight) 13,3 mm/s (Bottom hung) |
13,3 mm/s |
| Idle translation speed closing | 9.6 mm/s |
9.6 mm/s (Top hung, Skylight) 7,5 mm/s (Bottom hung) |
7,5 mm/s |
| Duration of the idle stroke | 63 s |
83 s (Top hung, Skylight) 63 s (Bottom hung) |
75 s |
| Service type | S2 of 4 min | S2 of 4 min | S2 of 4 min |
| Operating temperature | -5°C + 50°C | -5°C + 50°C | -5°C + 50°C |
| Protection Class | IP 30 | IP 30 | IP 30 |
| Possibility of installing double push point on the same window | yes | yes | yes |
| Parallel connection option | yes | yes | yes |
| Overlap from 0 to 50 mm with self-learning | yes | yes | yes |
| Dimensions (mm) | 40 x 55 x 811 | 40 x 55 x 911 | 40 x 55 x 1011 |
