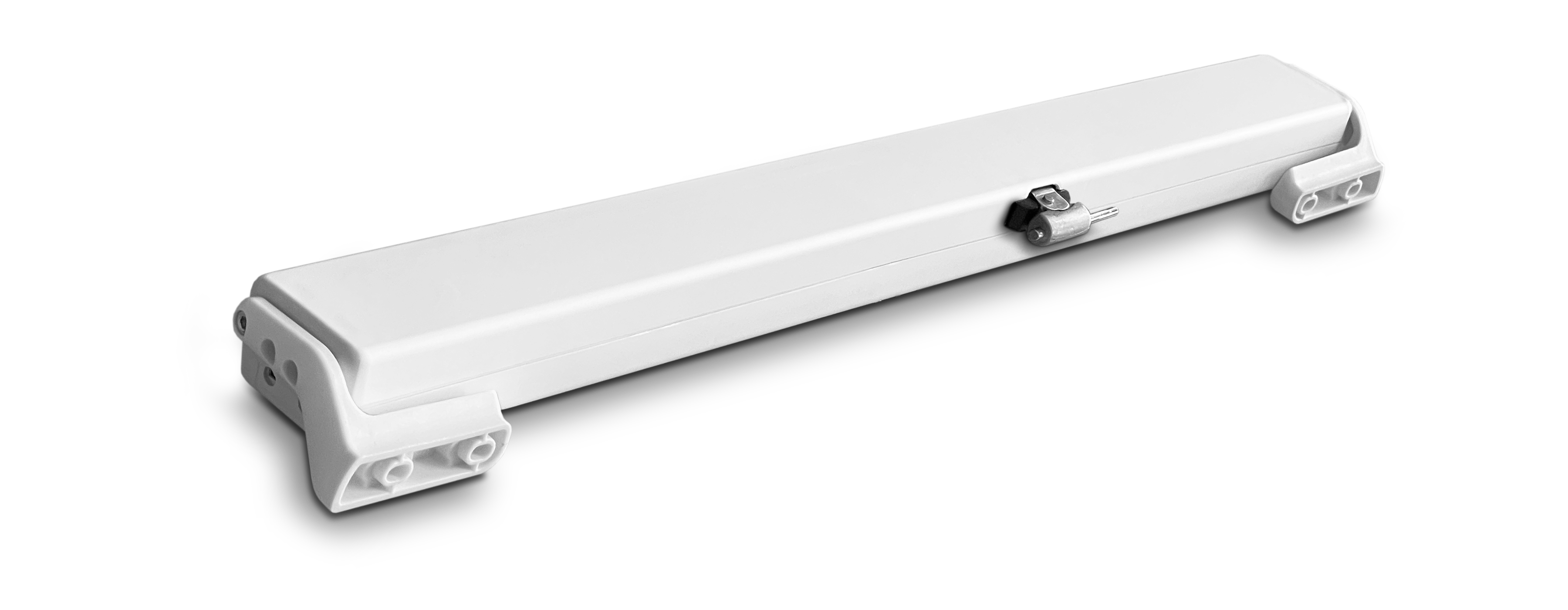

CHAIN ACTUATOR C60

Electric Actuator with High Efficiency and Streamlined Design

The TOPP C60 electric chain actuator is engineered for applications requiring long stroke operation in a compact and aesthetically refined body. Designed for top-hung and bottom-hung windows, it integrates a double-link articulated chain housed in a slim casing with optimized mechanical strength.

It offers a stroke of 510 mm or 600 mm, selectable via external adjustment knobs, and supports a maximum load of 300 N. Available in both 230V~ 50Hz and 24V DC versions, it is adaptable to a wide range of control systems, including smart automation networks.

The actuator includes an electronic end-of-stroke detection system using amperometric absorption in closing, which ensures safe and reliable operation without chain adjustment. Its special chain hooking mechanism provides high resistance during long-stroke operation, even on top-hung windows.

Quick and easy installation is enabled via simple swivel brackets, making it suitable for both new constructions and retrofit projects. The device is CE marked and offers a balance between performance, design, and installation flexibility.

Key Features – TOPP C60

• 🔹 Selectable stroke: 510 mm or 600 mm
• 🔹 Force: up to 300 N
• 🔹 Voltage: 230V~ 50Hz or 24V DC
• 🔹 Double-link articulated chain in slim housing
• 🔹 External knobs for stroke and force adjustment
• 🔹 Amperometric end-of-stroke detection in closing

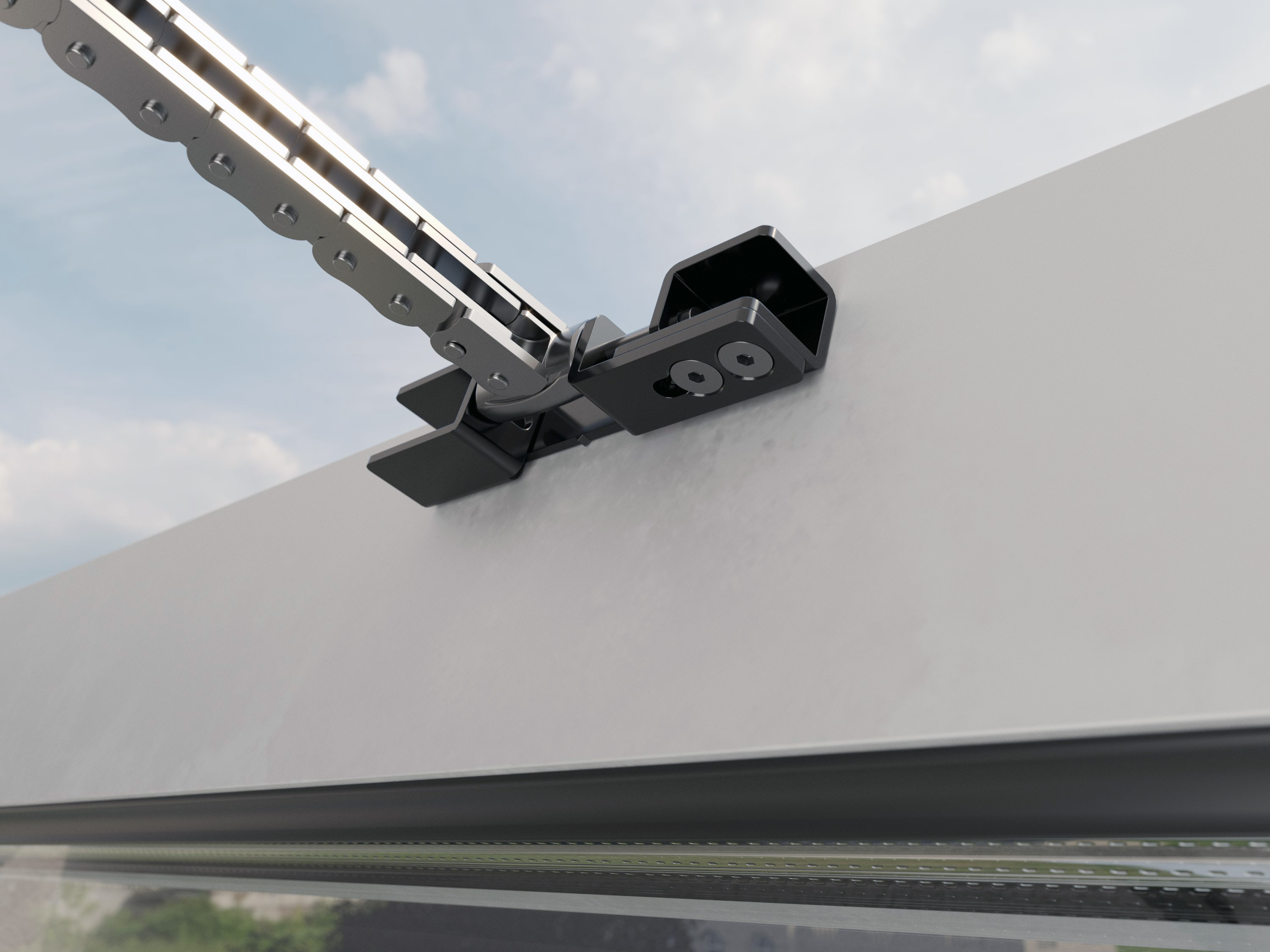

• 🔹 Special chain hooking for increased load resistance
• 🔹 Quick swivel brackets for fast installation
• 🔹 CE marked
• 🔹 Color options: white, black, grey

Applications

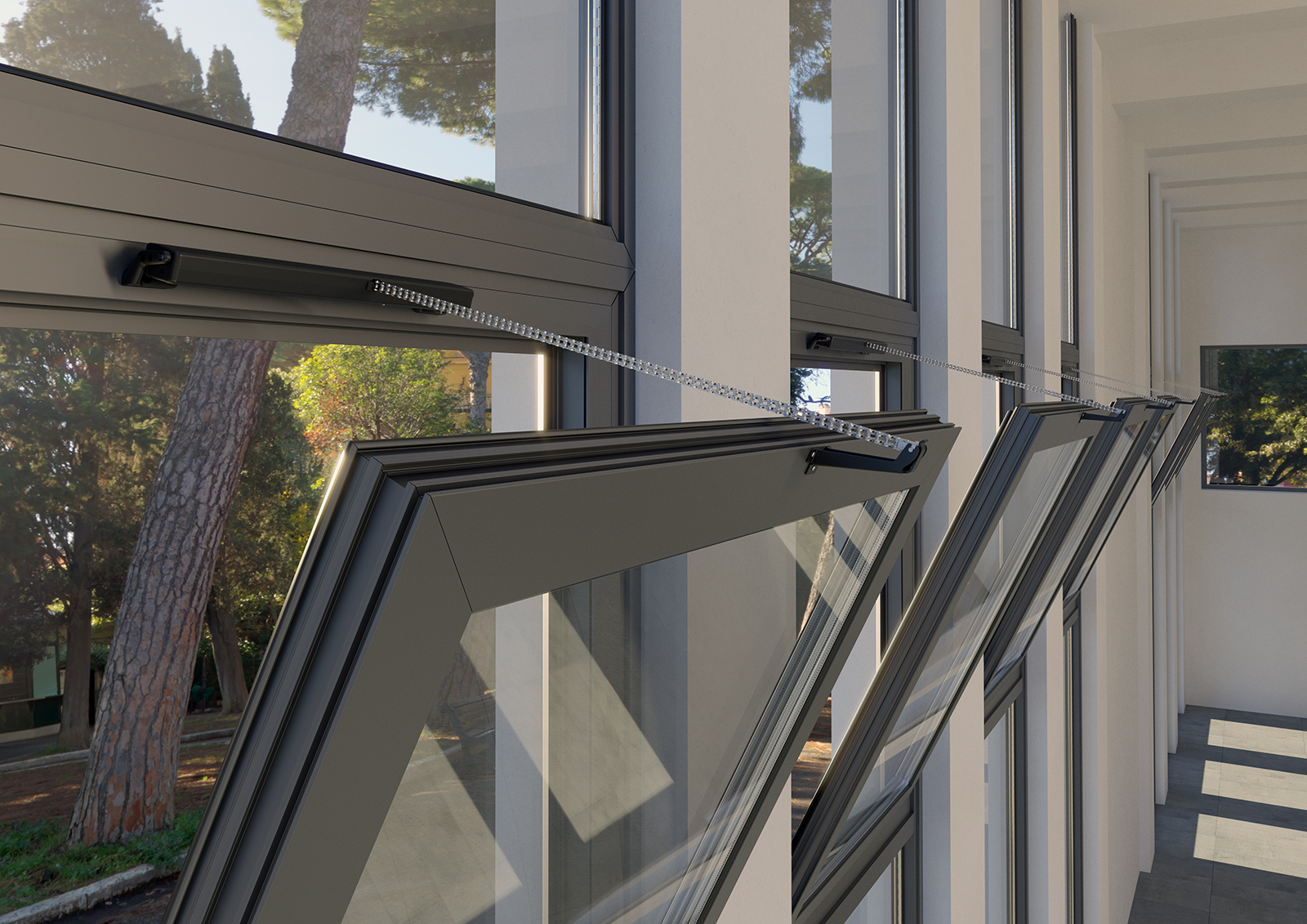

• 🔹 Top-hung and bottom-hung windows
• 🔹 Long-stroke façade openings
• 🔹 Commercial and residential automation
• 🔹 Integration with BMS and IoT systems
