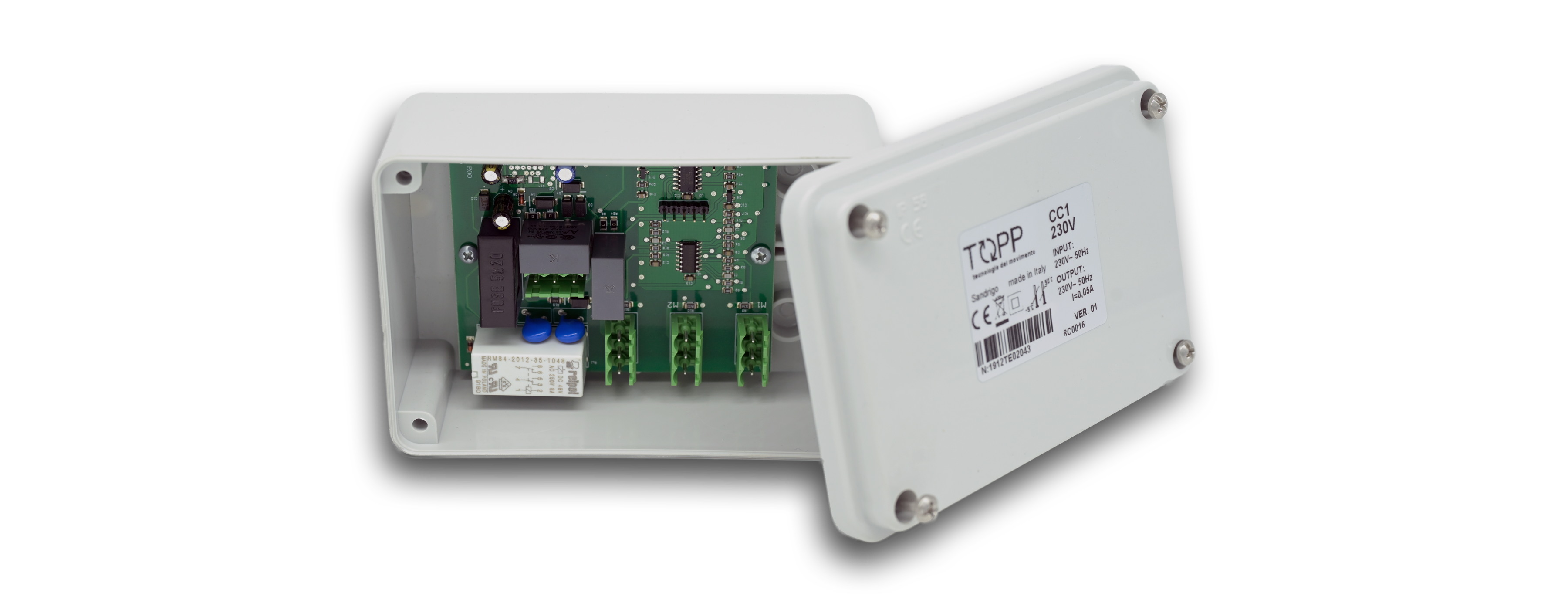

CONTROL UNIT CC1

Advanced Safety Module for Multi-Actuator Installations

The TOPP CC1 is a dedicated control unit engineered to monitor and protect systems using up to three T50 actuators (230V, 320 mm stroke) installed on the same window or skylight. Designed with operational safety in mind, it ensures coordinated and reliable performance in multi-actuator applications.

In the event of a malfunction or obstruction causing one actuator to stop, the CC1 instantly halts the operation of all connected actuators within 2 seconds, minimizing the risk of damage or misalignment. This rapid response prevents mechanical stress and ensures structural integrity.

To further enhance safety, after a forced stop, the system permits motion only in the opposite direction to the one that triggered the fault, avoiding accidental continuation of the problematic movement. This functionality makes CC1 ideal for sensitive architectural and industrial environments where synchronized movement is critical.

Key Features – TOPP CC1

• 🔹 Monitors up to 3 T50 actuators (230V, 320 mm stroke)
• 🔹 Automatic shutdown of all actuators within 2 seconds in case of failure
• 🔹 Enables only reverse movement after obstruction or fault
• 🔹 Enhances safety and prevents mechanical damage
• 🔹 Ideal for skylights, domes, and large window systems

Applications

• 🔹 Skylights and dome systems with synchronized T50 actuators
• 🔹 Large top-hung windows with multiple drive points
• 🔹 Smoke and heat extraction systems (NSHEV)
• 🔹 Safety-critical window automation installations
