CONTROL UNIT TF23R

Smart Wall-Mounted Weather Control Unit with Remote Management

The TF23R by TOPP is a compact and intelligent control and power unit designed to manage up to 3 independent 24V DC actuators. It is equipped with an integrated 433 MHz radio receiver and supports remote control operation via the TR8 remote. The unit is ideal for automated window systems in residential or commercial applications.

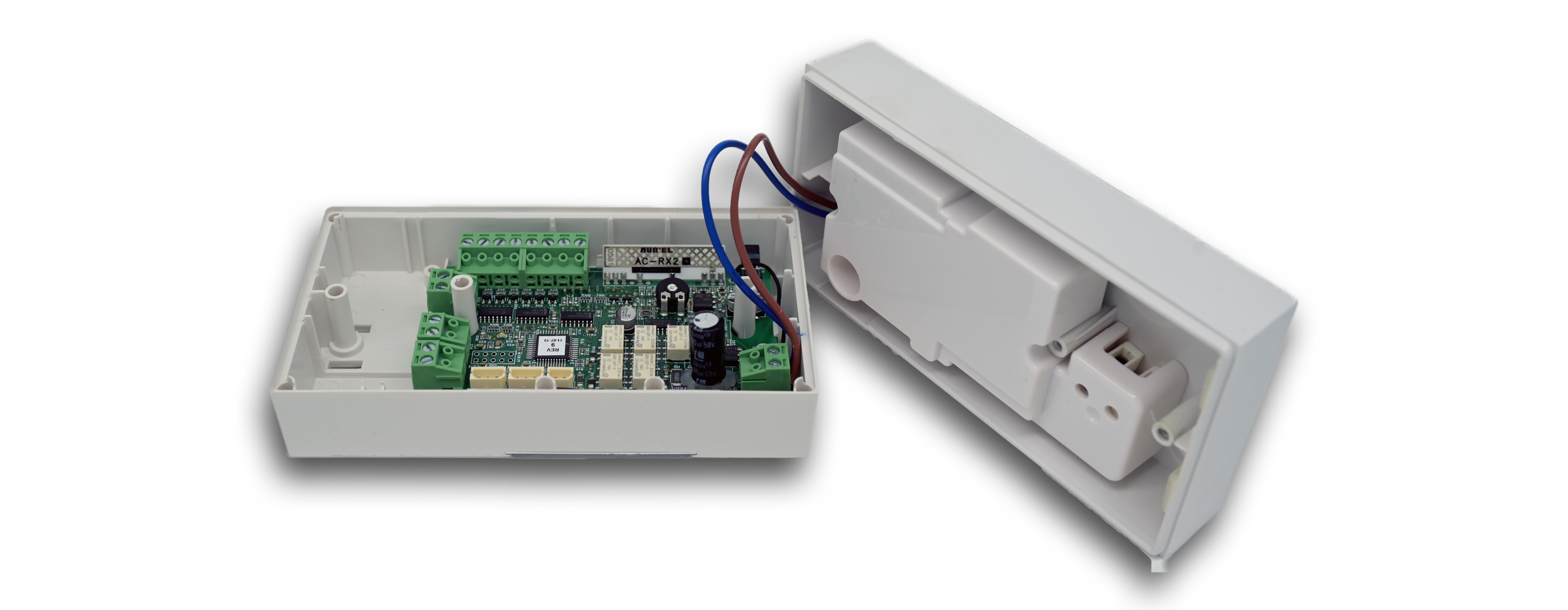

Housed in a wall-mounted casing, the TF23R includes a sliding access panel for easy programming of remote controls and emergency override functions. It supports various automation modes via dip switch settings and includes manual, remote, or sensor-based operation.

In manual mode, up to three roller-blind switches (with center OFF position) can be used to control each actuator independently in step-by-step mode. When connected to weather sensors such as the RW wind sensor and RDC12 rain sensor, the unit reacts automatically to adverse weather conditions by closing all connected windows.

The SP1 multifunction button allows emergency open/close actions and radio channel programming, while a built-in blue LED indicator monitors system status. The TF23R is a powerful and user-friendly solution for applications with TOPP 24V actuators like C15, C20, or C60.

Key Features – TOPP TF23R

• 🔹 Voltage: 24V DC – controls 3 actuators independently
• 🔹 Built-in 433 MHz radio receiver – compatible with TR8 remote
• 🔹 Manual or automatic operation modes via dip-switch settings
• 🔹 Weather sensor support – compatible with RW wind and RDC12 rain sensors
• 🔹 Blue LED for system status monitoring
• 🔹 Wall-mounted enclosure with sliding programming cover

Applications

• 🔹 Roof windows with 24V DC actuators
• 🔹 Natural ventilation in smart homes and buildings
• 🔹 Weather-responsive window control
• 🔹 Remote-controlled ventilation openings
