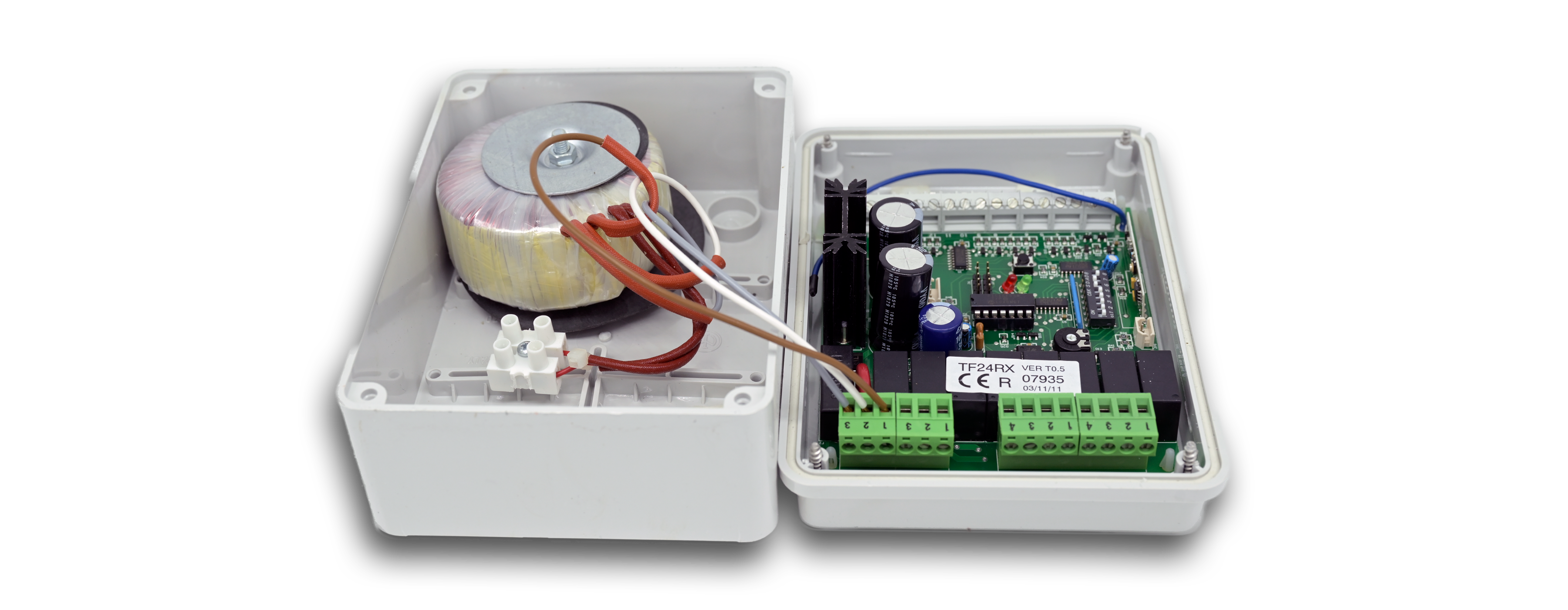

CONTROL UNIT TF24R
Smart Window Control with Wireless and Weather Sensor Integration
The TF24R control and power unit by TOPP is a weather-responsive automation system designed for managing and powering up to four groups of 24V actuators. It provides a robust and intelligent solution for natural ventilation, safety, and smart building applications.
Equipped with a 433.92 MHz radio receiver, the TF24R supports remote operation using the TR8 wireless transmitter. It is also compatible with RW wind sensors and RDC heated rain sensors, enabling automated closure of windows in response to wind or rain – ensuring both energy efficiency and occupant safety.
The TF24R unit can be expanded using the AL/TF backup power supply and MEM/AL power booster modules, which increase output capacity up to 16A at 24V. This makes the unit ideal for more demanding installations requiring both reliability and scalability.
Key Features – TOPP TF24R
- 🔹 Voltage: 24V DC – controls 4 actuator groups
- 🔹 Integrated 433.92 MHz receiver – compatible with TR8 remote control
- 🔹 Works with RW wind sensor and RDC heated rain sensor
- 🔹 Smart weather automation – closes windows during rain or high wind
- 🔹 Expandable with AL/TF power supply and MEM/AL booster modules (16A total)
- 🔹 Ideal for ventilation, atriums, smart facades, and automated buildings
Applications
- 🔹 Natural and smoke ventilation systems
- 🔹 Weather-responsive window automation
- 🔹 Commercial and residential smart buildings
- 🔹 Remote-controlled facade systems
Need Help?
Use the form below to request support for configuration, compatibility, or installation of the TOPP TF24R control unit. Our experts are ready to assist with your project needs.
Technical Specifications – TOPP TF24R Control Unit
| Technical Characteristics | Control unit TF24R |
| Power voltage | 230 V~50 Hz. |
| Output voltage | 24V |
| Max power consumption | 62W / output |
| Max absorbed current | 1,35 A / output |
| Service type | S1-Continuous |
| Pre-set for | wind sensor (RW) rain detector (RDC 12), remote controller (TR8), push button, thermostat |
| Max number of remote controllers | 6 |
| Operating temperature | - 5 + 50 °C |
| Dimensions | 160x120x75 mm |
| Optional module for increasing the output power (16A) | yes (MEM/AL) |
| Optional battery connection | yes (AL/TF) |
| Connectable actuators C15 | 4* |
| Connectable actuators C20 | 4* |
| Connectable actuators C20 TANDEM | 4* |
| Connectable actuators C30 | 4* |
| Connectable actuators C40 | 4* |
| Connectable actuators C50 | 4* *** |
| Connectable actuators C60 | 2 |
| Connectable actuators ACK4 | - |
| Connectable actuators C130 | 8* |
| Connectable actuators C160 | 2 |
| Connectable actuators C240 | 4* |
| Connectable actuators C260 | - |
| Connectable actuators S80 | 4* *** |
| Connectable actuators T50 |
1 |
* Motors must be equally located on the four feeding unit outputs, which implies a 1 minute delay between 2 consecutive commands.
** Except 1000 mm stroke.
*** Max. 400 mm stroke.
