DUAL PUSH POINTS CHAIN ACTUATOR C240

Advanced Dual-Chain Actuator for Long Windows and High Loads

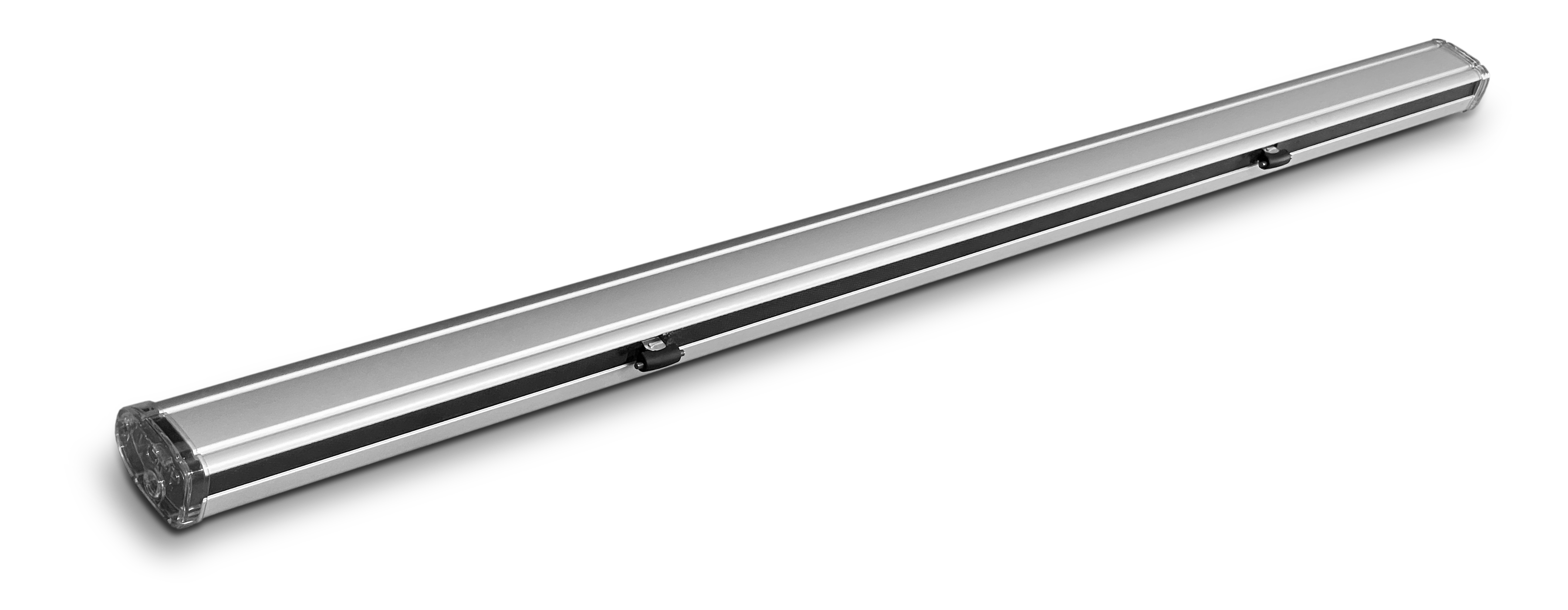

The TOPP C240 electric actuator features two double-link articulated chains integrated into a robust and elegant die-cast aluminum housing. Designed for long and wide windows, this actuator offers tailor-made profile lengths from 1200 mm to 4000 mm, making it ideal for façade ventilation and architectural automation projects.

It delivers a maximum thrust force of 400 N and supports a 360 mm stroke. Available in both 230V~ 50Hz and 24V DC versions, the actuator is compatible with a range of control systems, including smart building management systems (BMS). The fast hooking/unhooking system simplifies installation, while the electronic end-of-stroke control ensures safe and precise operation.

Thanks to its patented custom length system, the C240 can be adapted to the exact width of the window, ensuring optimal force distribution and a clean, integrated appearance.

Key Features – TOPP C240

• 🔹 Dual double-link chains for maximum strength and stability
• 🔹 Custom profile lengths from 1200 mm to 4000 mm (patented design)
• 🔹 Max. stroke: 360 mm
• 🔹 Max. thrust force: 400 N
• 🔹 Voltage: 230V~50Hz or 24V DC
• 🔹 Fast hooking/unhooking system for efficient installation
• 🔹 Cable exit on both sides of the housing
• 🔹 Elegant and modern die-cast aluminum design
• 🔹 Electronic stroke-end control by current absorption (closing)
• 🔹 CE marked device

Applications

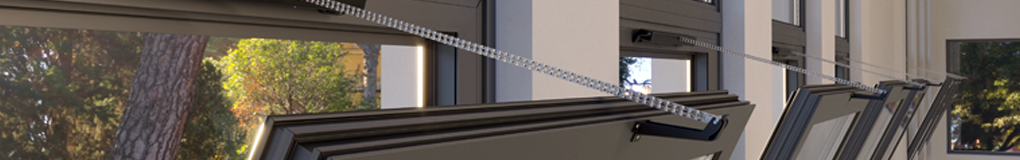

• 🔹 Façade automation for wide and long windows
• 🔹 Top- and bottom-hung windows in architectural projects
• 🔹 Commercial and public buildings
• 🔹 Smart ventilation integrated with BMS
