LINEAR ACTUATOR MAX

Reliable and Versatile Actuator for Demanding Applications

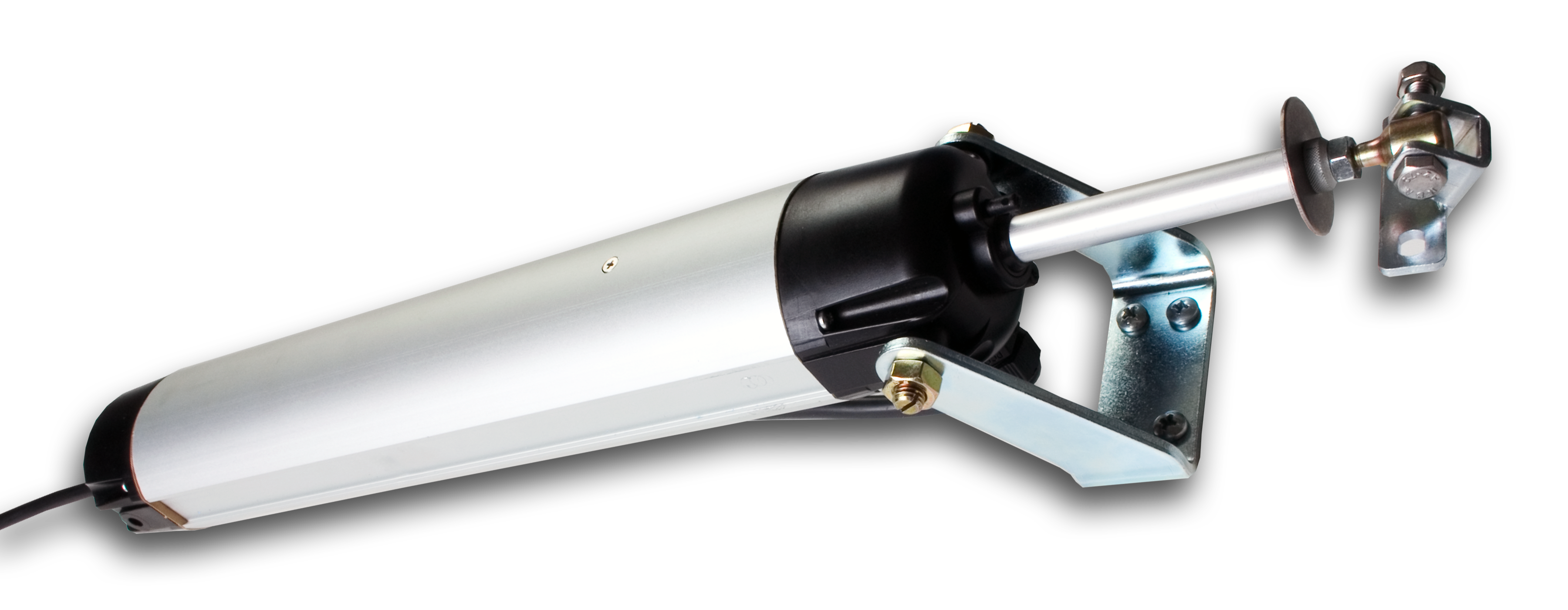

The UCS MAX is a premium electric spindle actuator designed for powerful and precise window automation. Built with a rigid spindle transmission system, the MAX delivers a thrust force of up to 450 N (350 N at 500 mm stroke) and is ideal for applications requiring strength, durability, and clean aesthetics.

Available in silver or dark brown anodized aluminum housing, the actuator features adjustable strokes of 180, 300, or 500 mm, and operates at 230V~ 50Hz. The MAX actuator is supplied with a 1-meter power cable and includes either a fixed-point or sliding bracket configuration. The sliding bracket option allows flexible installation, even in tight spaces or windows with sills or internal obstacles.

Rated at IP65, the actuator is well-protected against dust and water ingress, making it suitable for a wide range of indoor applications. For outdoor use, a special waterproof version (MAX WP) is available upon request.

Equipped with microswitches and thermal protection, the MAX ensures accurate stroke control and safe operation. For wider or heavier windows, it can be installed in a synchronized pair using the CP230 control unit. This allows both actuators to operate simultaneously and stop safely in case of failure.

The UCS MAX actuator is CE certified and offers top-tier performance, reliability, and ease of installation for professional window automation systems.

Key Features – UCS MAX

• 🔹 Rigid spindle transmission for precise motion
• 🔹 Power supply: 230V AC
• 🔹 Stroke options: 180 mm / 300 mm / 500 mm
• 🔹 Force: 450 N (350 N for 500 mm stroke)
• 🔹 Protection class: IP65
• 🔹 Microswitches and thermal protection
• 🔹 Supplied with 1 m cable
• 🔹 Sliding or fixed-point mounting options
• 🔹 Synchronous version available with CP230 control unit
• 🔹 Optional MAX WP version for outdoor applications

Applications

• 🔹 Top-hung or bottom-hung windows
• 🔹 Facade and dome ventilation
• 🔹 Natural ventilation systems
• 🔹 Smart building integration with synchronization support
