LINEAR ACTUATOR S80
Powerful and Weather-Resistant Linear Actuator for Demanding Applications

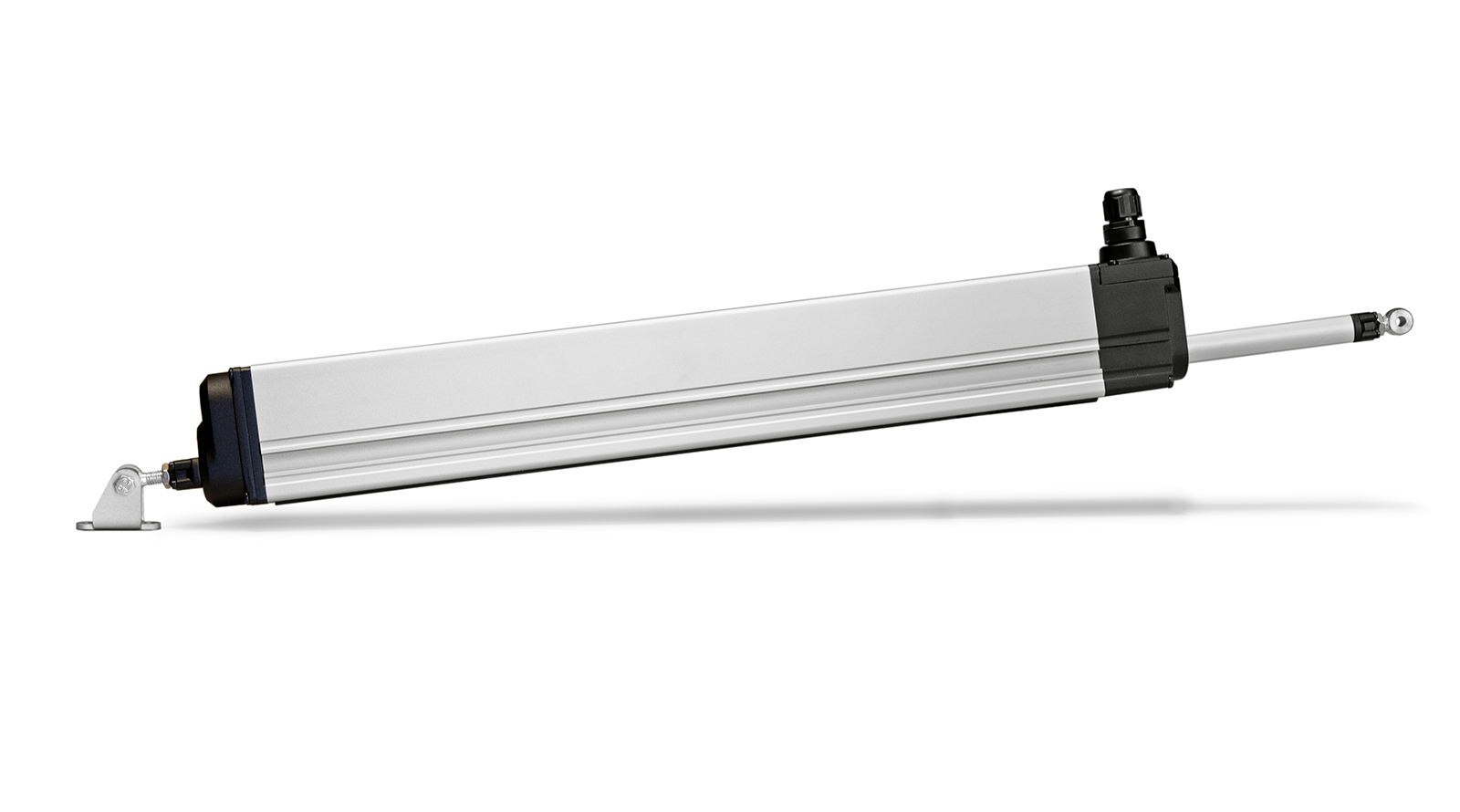

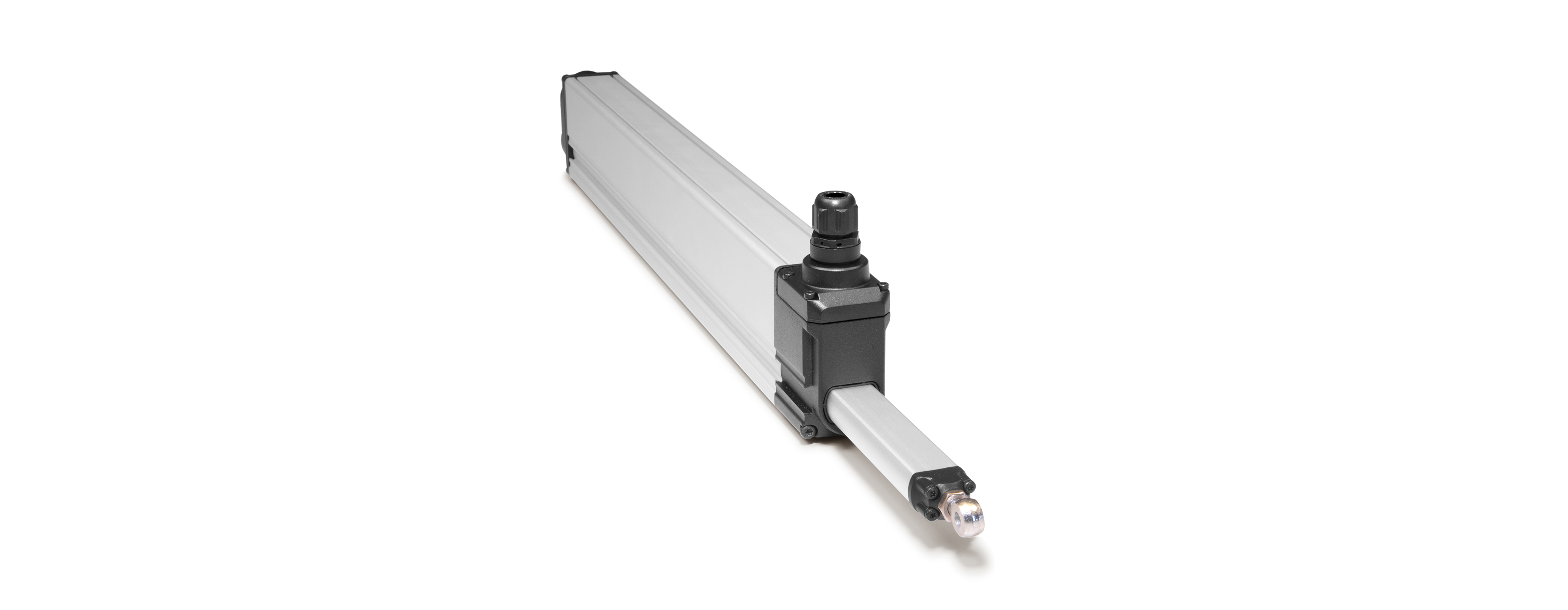

The TOPP S80 is a robust linear electric actuator engineered for heavy-duty window automation, especially for top-hung windows, louvres, and sun blades. Designed to deliver exceptional durability and strength, it features a self-aligning tilting movement that ensures optimal load distribution and alignment.
With a maximum pushing and pulling force of 800 N, the S80 is available in 230V 50Hz or 24V DC versions, offering flexibility for various system integrations. The actuator supports stroke lengths of 200, 400, 600, 800, and 1000 mm, each millimetrically adjustable for precise control. It is also preset for synchronous operation with a second actuator on the same window, making it suitable for wide or heavy structures.
The integrated stainless steel worm screw guarantees long-lasting performance even in harsh environments. Depending on the selected stroke, the actuator is protected to IP68 (for 200 and 400 mm) or IP65 (for 600–1000 mm), ensuring excellent resistance to dust and water ingress.
Fully CE certified, the TOPP S80 linear actuator is a perfect choice for industrial, architectural, and smart building automation projects requiring high force, reliability, and protection in outdoor or exposed conditions.
Key Features – TOPP S80

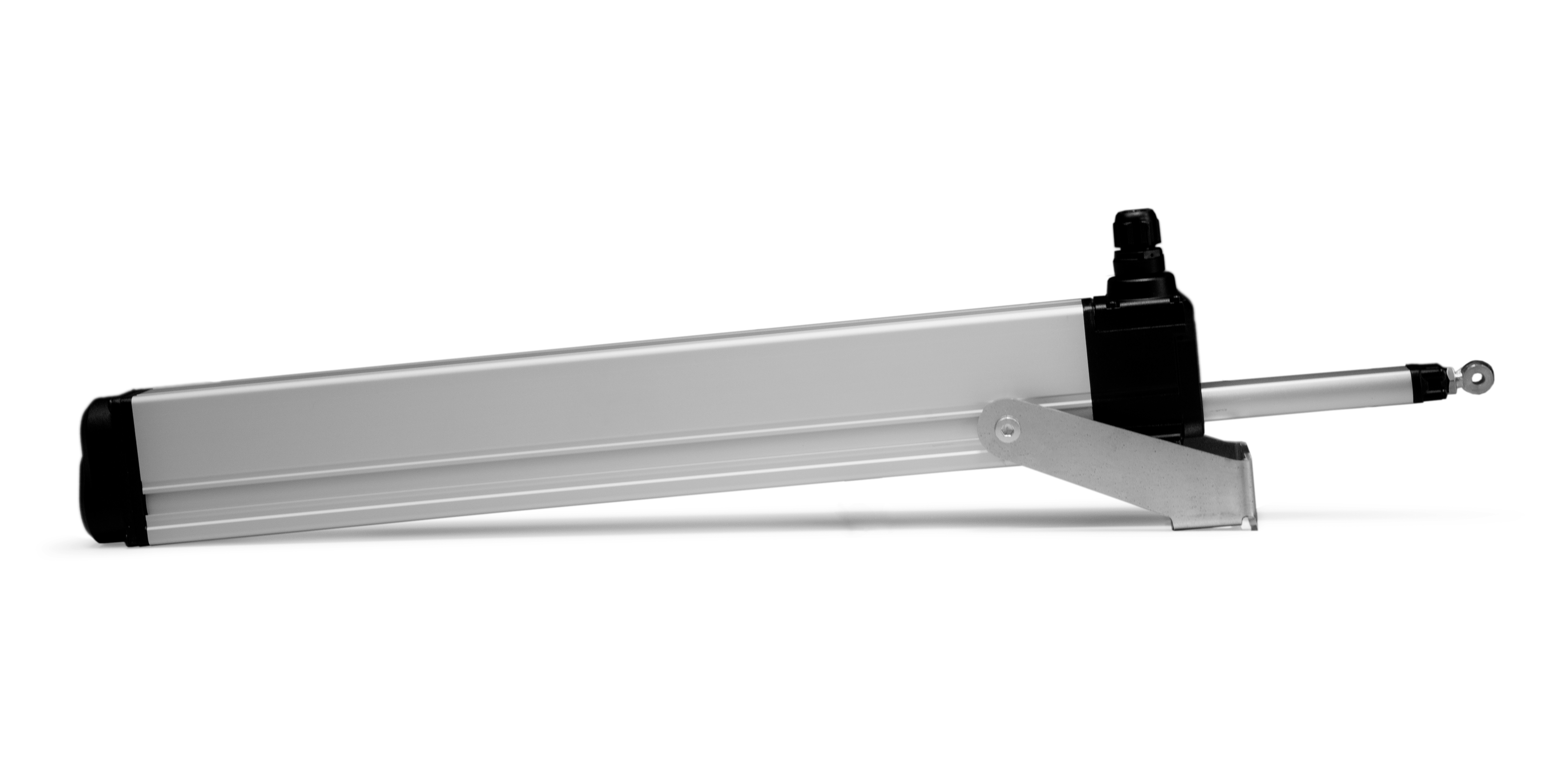

- 🔹 Linear actuator with self-aligning tilting movement
- 🔹 Available in 230V~ 50Hz or 24V DC
- 🔹 Max. thrust/traction force: 800 N
- 🔹 Stroke options: 200 / 400 / 600 / 800 / 1000 mm
- 🔹 Stainless steel worm screw for high durability

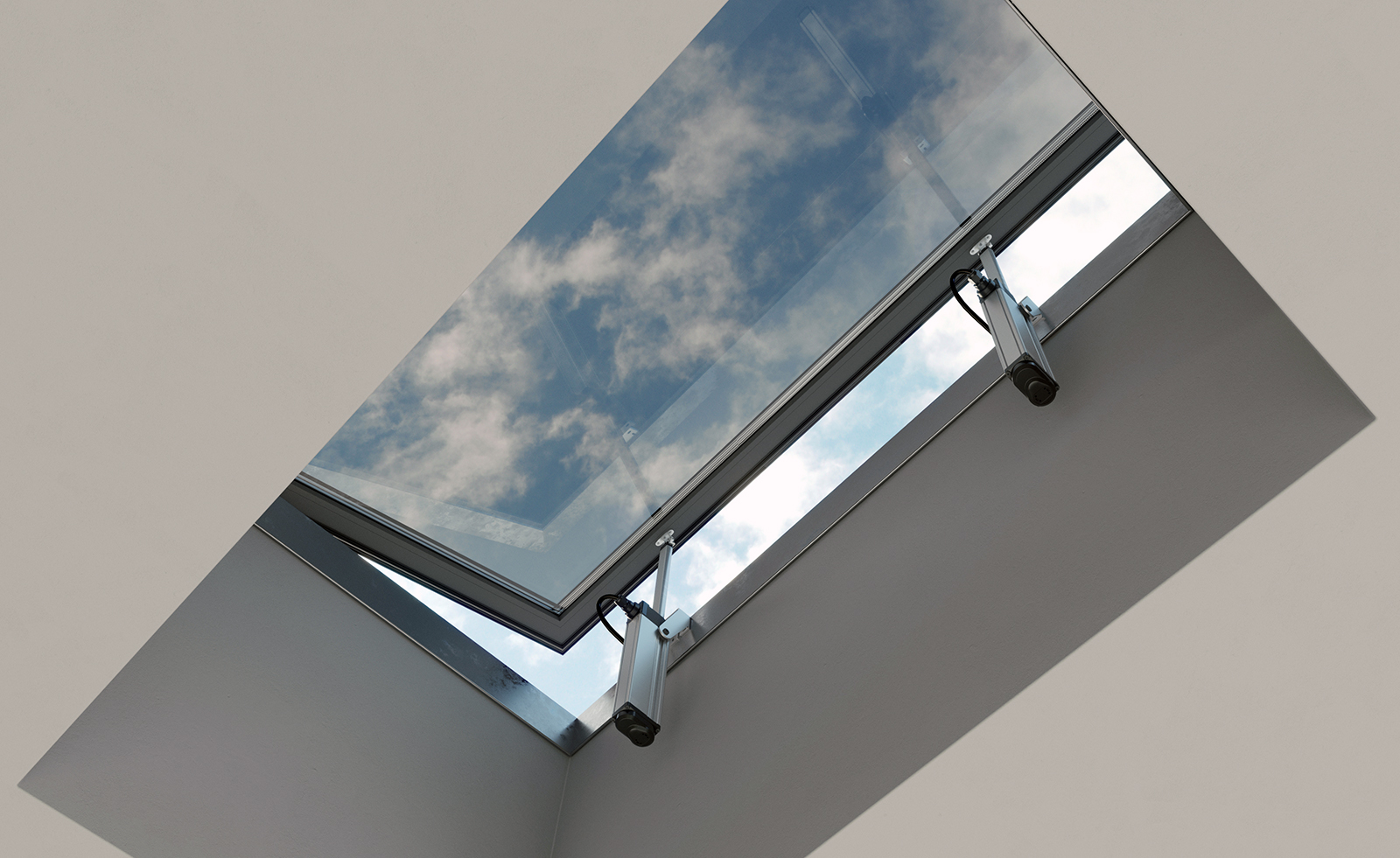

- 🔹 Synchronous operation preset for use with second actuator

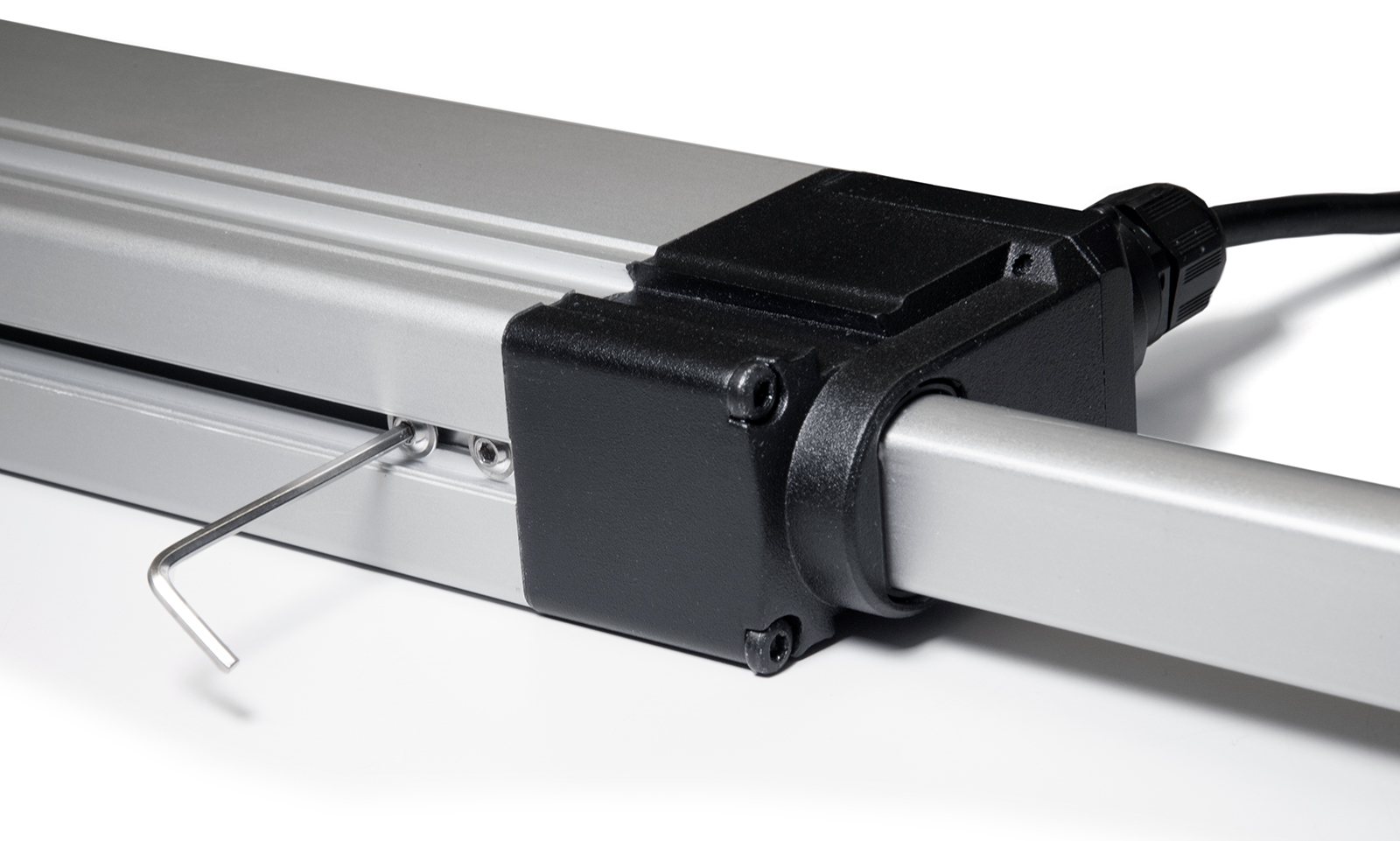

- 🔹 Millimetrically adjustable stroke for precise control

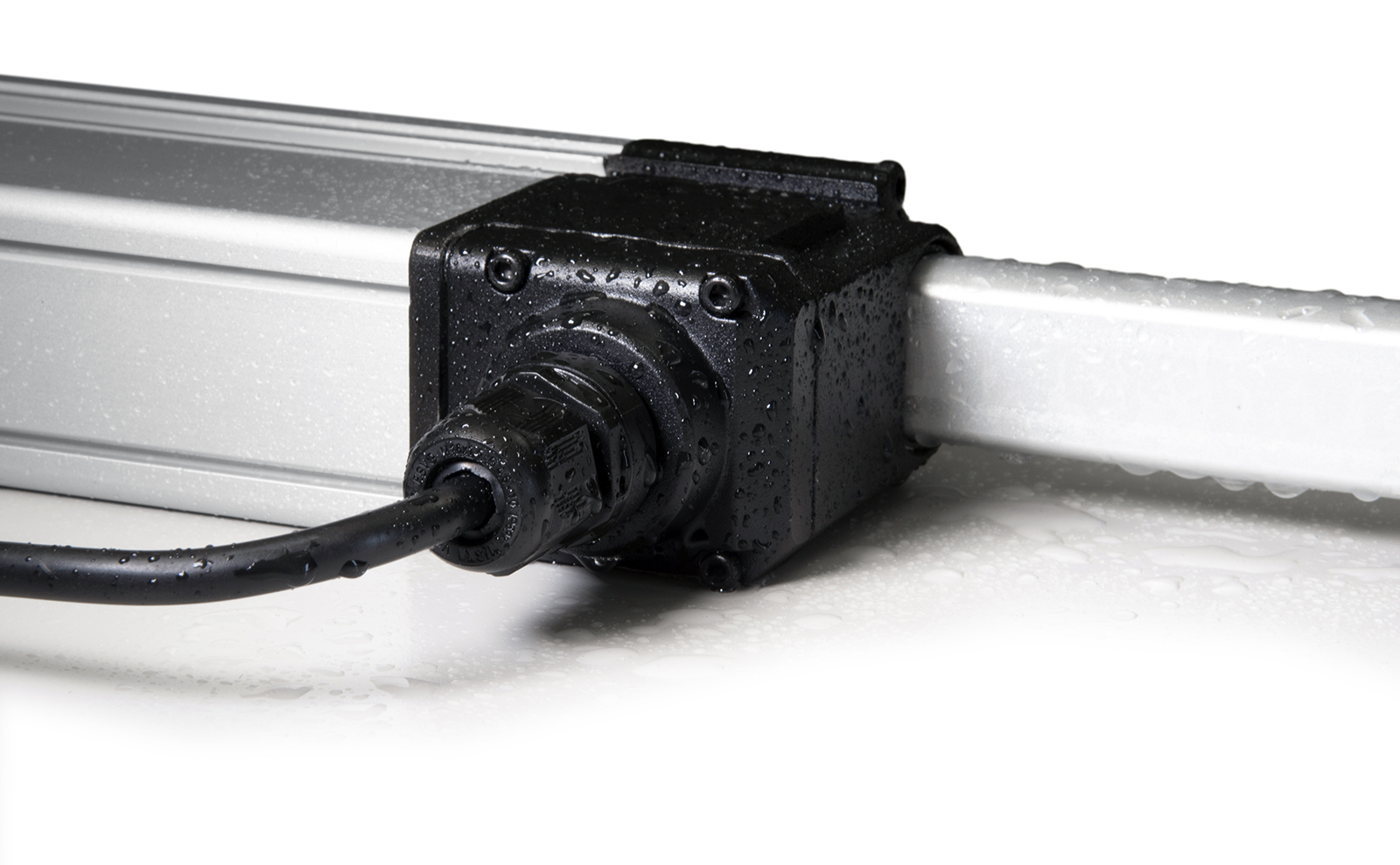

- 🔹 Protection rating: IP68 (200/400 mm) and IP65 (600/800/1000 mm)
- 🔹 CE certified
Applications

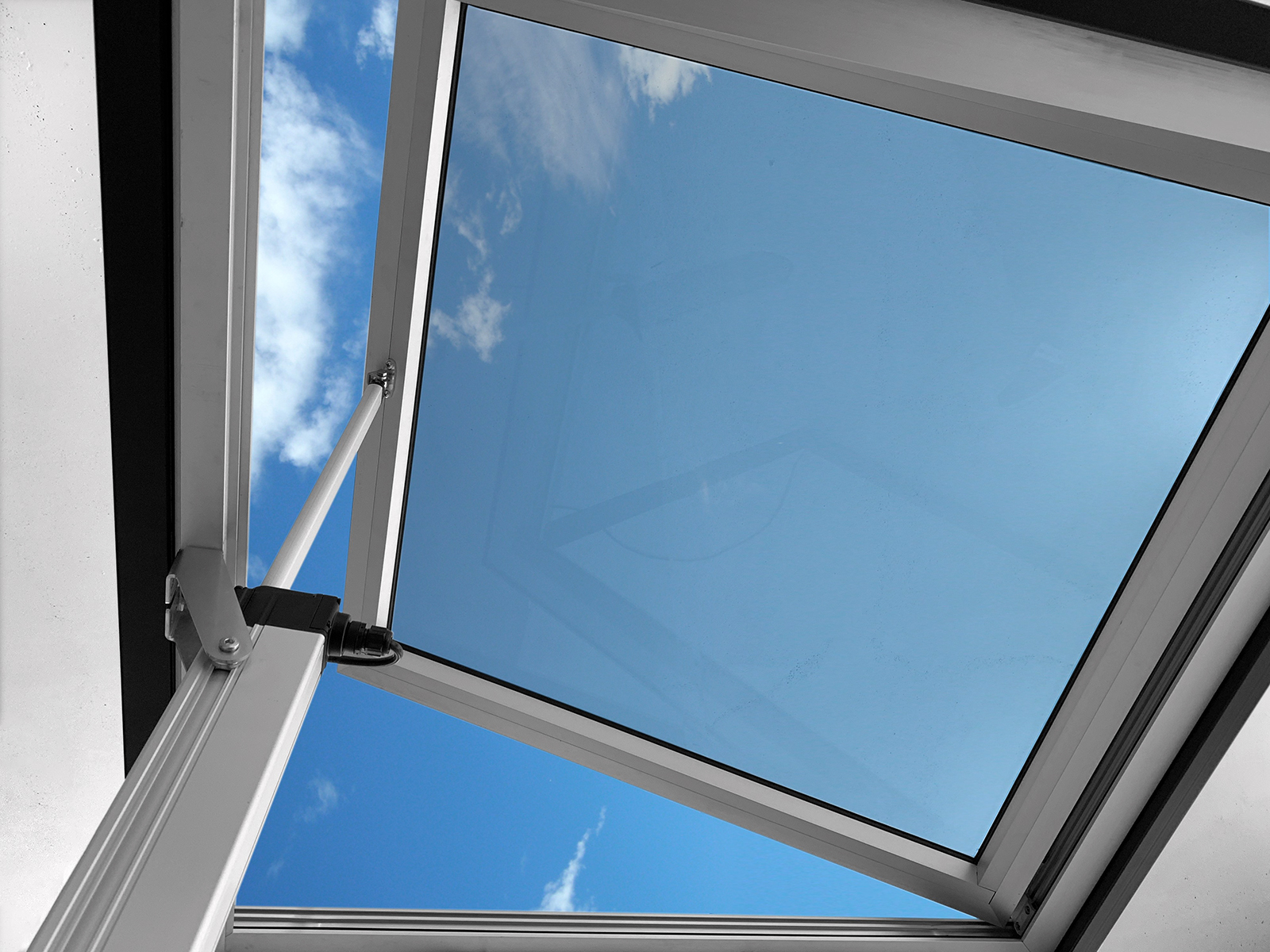

- 🔹 Top-hung windows and domes

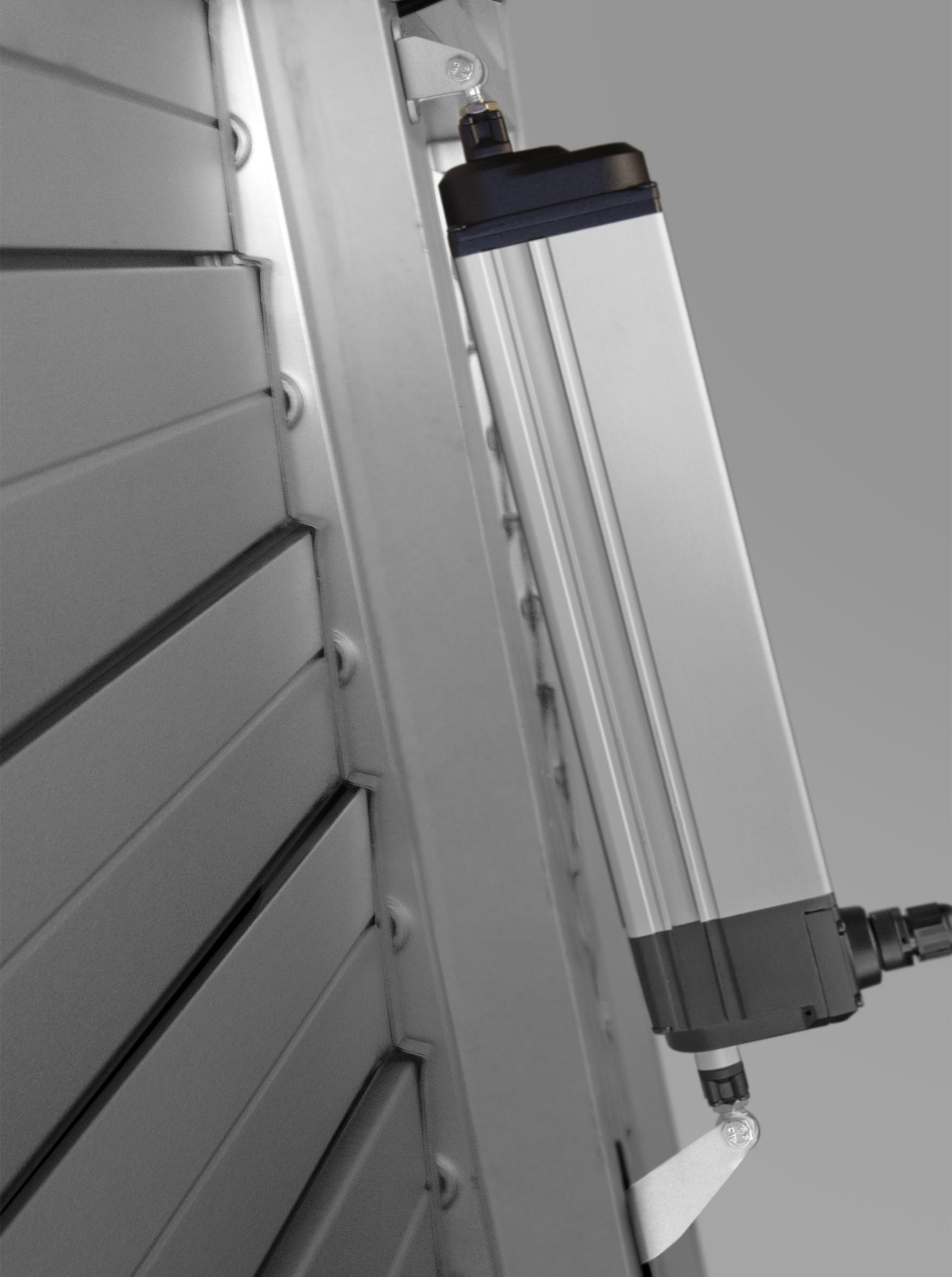

- 🔹 Sun blades and louvres
- 🔹 Smart building ventilation systems
- 🔹 Industrial façade automation
- 🔹 Outdoor environments requiring weather protection
Need Help?
Use the form below to request technical assistance or custom configurations for the TOPP S80 actuator. Our team will help you find the ideal solution for your project.
Technical Specifications – TOPP S80 Linear Actuator
| Technical Characteristics | S80 230V |
S80 24V |
| Power voltage | 230V~50Hz | 24V |
| Max applicable load in thrust | 800 N | 800 N |
| Max applicable load in traction | 800 N | 800 N |
| Max applicable load in thrust of 2 synchronized S80 | 1500N | 1500N |
| Max applicable load in traction of 2 synchronized S80 | 1500N | 1500N |
| Strokes | 200 - 400 - 600 - 800 - 1000 mm | 200 - 400 - 600 - 800 - 1000 mm |
| Absorbed current | 0,2 A | 1 A |
| Idle translation speed | 6,5 mm/s | 6,5 mm/s |
| Double electrical insulation | yes | yes |
| Service type | S2 3min | S2 3min |
| Operating temperature | -20°C + 60°C | -20°C + 60°C |
| Protection Class | IP68 (Strokes 200-400) IP65 (Strokes 600-800-1000) | IP68 (Strokes 200-400) IP65 (Strokes 600-800-1000) |
| Parallel connection option | yes | yes |
| Synchronous operation of 2 S80 on the same window | yes | yes |
| Stroke end | mechanical / electronic | mechanical / electronic |
