LINEAR ACTUATOR ULYSSES

Ideal for Sun Blades, Louvers, and Natural Ventilation

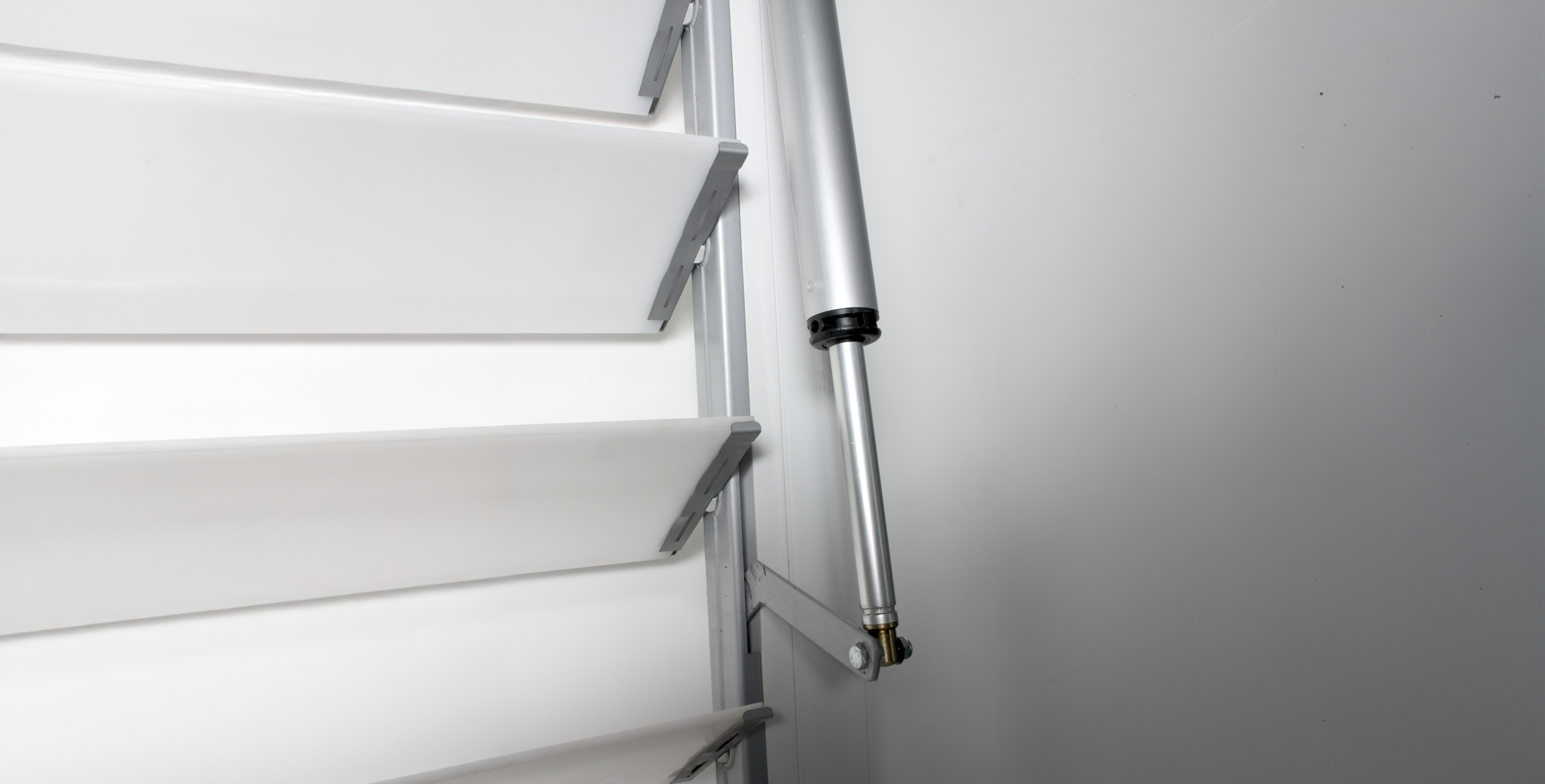

The UCS ULYSSES is a slim, high-performance electric spindle actuator designed especially for external solar shading systems such as sun blades and louvers. With a minimal external diameter of only 34 mm, it offers powerful actuation in tight spaces and demanding architectural designs.

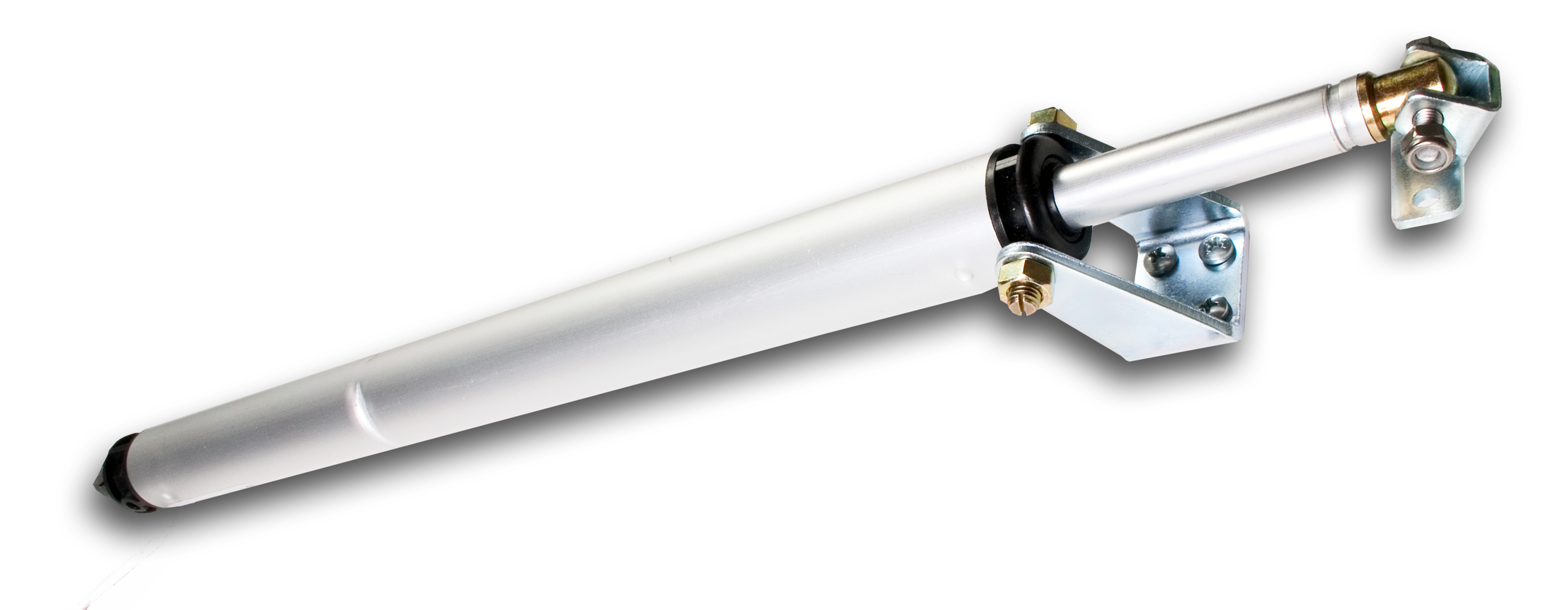

The actuator operates on 24V DC and provides a thrust and traction force of up to 650 N. Two stroke options are available: 180 mm and 300 mm. Built with a rigid spindle transmission and anodized silver aluminum housing, ULYSSES combines strength, elegance, and durability.

Rated at IP65, it is protected against dust and water, making it suitable for external façade systems. It comes with a steel end bracket and electrical connector for front or back mounting. A rear aluminum bracket and a stroke reduction kit are also available upon request.

The ULYSSES actuator is also compatible with 90° opening side-hung windows, using optional triangular brackets and an electromagnetic locking system to ensure proper sealing. A dedicated version – ULYSSES RWA – is available for smoke and heat extraction systems (SHEV), tested in compliance with EN 12101-2.

With its minimal size, high force output, and multiple mounting options, the UCS ULYSSES actuator is the perfect choice for modern architectural ventilation and shading automation.

Key Features – UCS ULYSSES

• 🔹 Voltage: 24V DC
• 🔹 Stroke options: 180 mm or 300 mm
• 🔹 Max pushing/pulling force: 650 N
• 🔹 Slim body – only 34 mm in diameter
• 🔹 Rigid spindle transmission for precise operation
• 🔹 IP65 protection – suitable for external applications
• 🔹 Anodized silver aluminum body for strength and aesthetics
• 🔹 Front or rear mounting options
• 🔹 Optional stroke limiter and triangular brackets
• 🔹 Optional version for SHEV systems (ULYSSES RWA)

Applications

• 🔹 External solar shading (sun blades, louvers)
• 🔹 Top-hung or side-hung windows (inward/outward)
• 🔹 Natural ventilation and façade automation
• 🔹 Smoke and Heat Extraction (SHEV) – EN 12101-2 compliant version available
