SYNCHRONOUS CHAIN ACTUATOR C30S

Advanced Synchronized Actuation for Demanding Window Applications

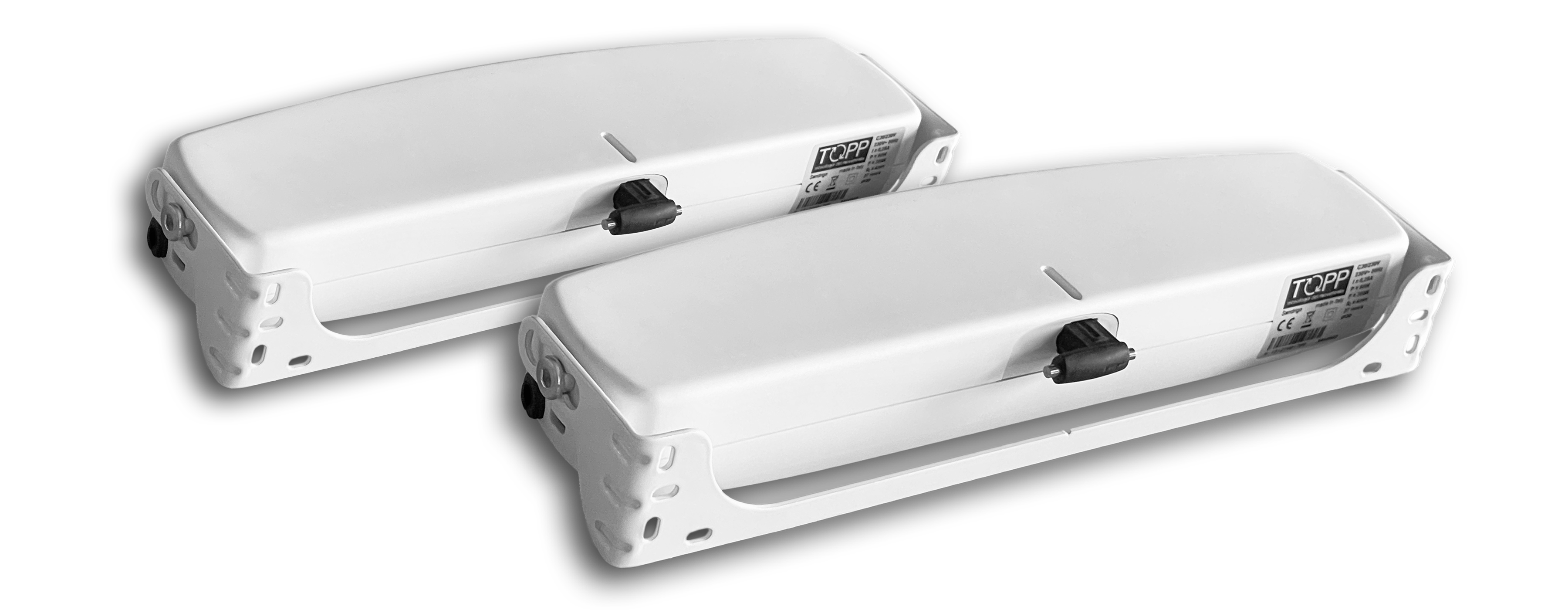

The TOPP C30S is a high-performance synchronous chain actuator designed for wide and heavy windows requiring dual push points. Featuring an integrated electronic synchronization system, it ensures precise and balanced operation of two actuators without the need for an external control unit. Ideal for installations where windows exceed 1400–1500 mm in width or require enhanced support due to their weight.

Operating at 230V~50Hz, the C30S offers selectable strokes of 200 mm or 380 mm, easily adjustable via an internal switch. Its ergonomic profile allows for easy integration into modern frames, while the both actuators delivers a combined pushing and pulling force of 500 N.

The actuator features TOPP’s Smart Reset System (SAI), which optimizes closing performance, as well as a chain position monitoring system and an acoustic warning device to signal incorrect installation. Mounting accessories for top-hung, bottom-hung, and optional vertical (roof) applications are included, ensuring flexibility across a range of architectural configurations.

The C30S is CE certified and complies with CEE89/336 and CEE73/23 directives. It is available in white, grey, and black finishes.

Key Features – TOPP C30S

• 🔹 Synchronous dual chain actuator for wide or heavy windows
• 🔹 Integrated electronic synchronization – no external control unit needed
• 🔹 Stroke options: 200 mm or 380 mm (selectable by switch)
• 🔹 Total force: 500 N (pushing and pulling)
• 🔹 Acoustic error signal for incorrect installation
• 🔹 Smart Reset System (SAI) for optimized window closing
• 🔹 Accessories for various window types included
• 🔹 Power supply: 230V~50Hz
• 🔹 Available colors: white, grey, black

Applications

• 🔹 Wide and heavy top-hung or bottom-hung windows
• 🔹 Skylights and roof windows (with optional vertical brackets)
• 🔹 Dual push-point window automation
• 🔹 Residential, commercial, or industrial natural ventilation
