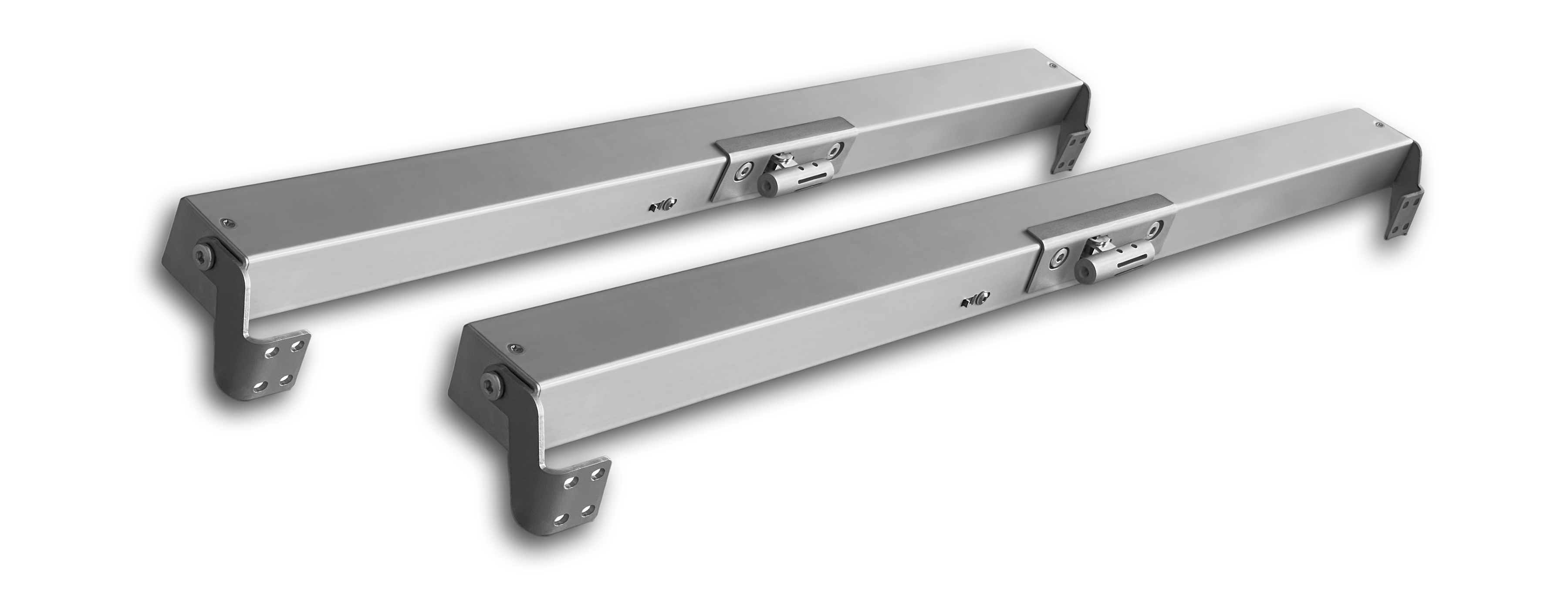

SYNCHRONOUS CHAIN ACTUATOR C50
High-Load Actuator with Long Stroke and Built-In Synchronization
The TOPP C50 Synchronous actuator is a high-performance solution engineered for the automation of large and heavy skylights, top-hung and bottom-hung windows. Designed with a durable aluminium body and an integrated double-link chain, this actuator provides a robust thrust force of up to 900 N in total.
Operating on 24V DC, the actuator supports long strokes of 600 mm, 800 mm, or 1000 mm, making it suitable for industrial and commercial ventilation systems. The device includes a preset synchronous system for the coordinated operation of two actuators on a single window wing—ideal for applications requiring balanced movement and enhanced strength.
Certified according to EN 12101-2 for smoke and heat evacuation (SHEV) for 600 mm and 800 mm strokes, the C50 is a trusted solution for life-safety systems. A patented chain terminal and load adjustment system enhances resistance to heavy loads, even over extended strokes, while ball-bearing-supported gearbox shafts ensure long-term reliability.
Thanks to its compact design and specialized mounting brackets, installation is quick and flexible for a range of window types. Available in white, grey, and black finishes.
Key Features – TOPP C50

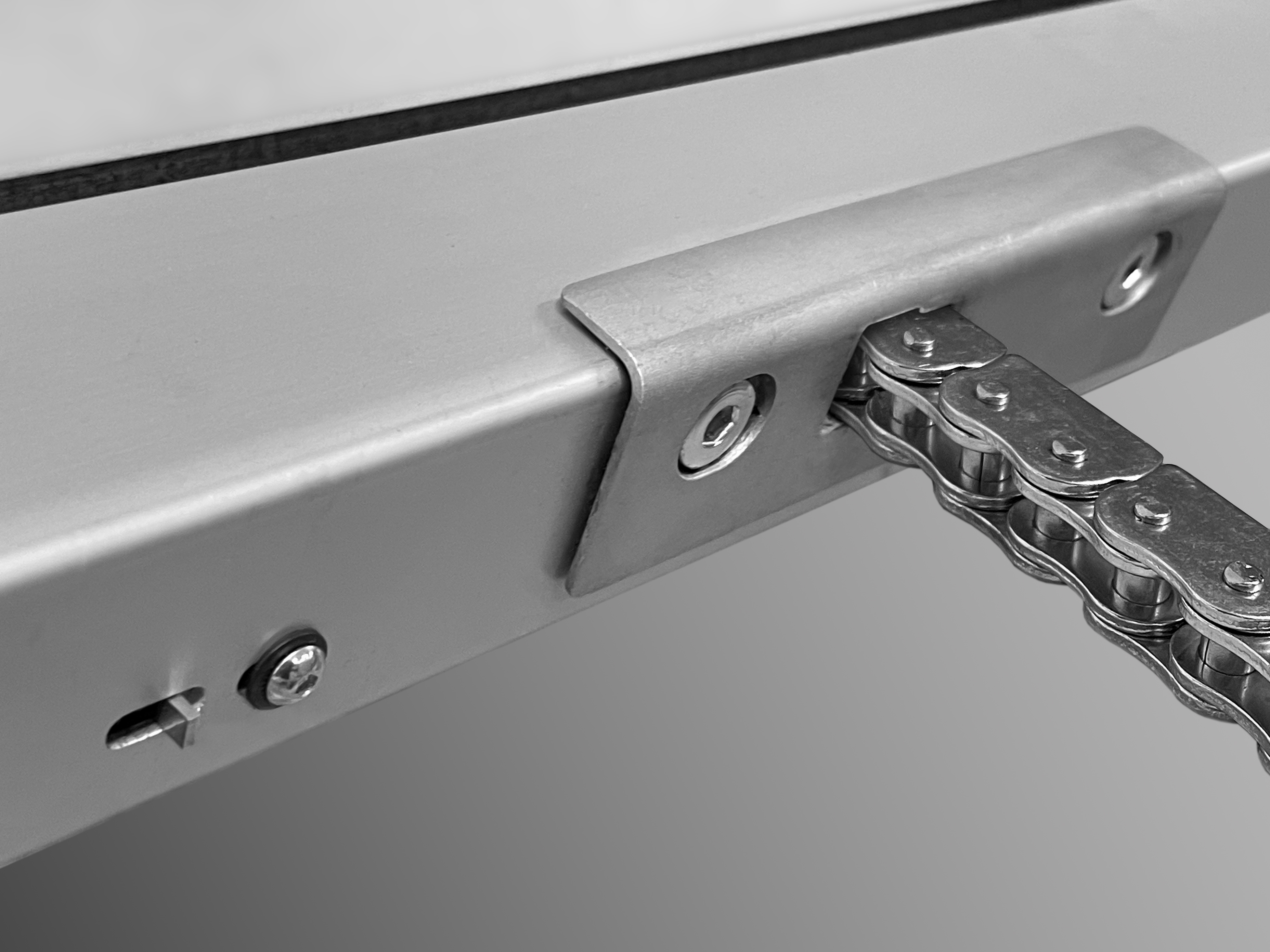

- 🔹 Double-link articulated chain for enhanced durability
- 🔹 Synchronous operation preset for dual actuators on one window
- 🔹 900 N pushing and pulling force in total
- 🔹 Long strokes: 600 mm, 800 mm, 1000 mm
- 🔹 24V DC power supply – ideal for smoke ventilation systems
- 🔹 EN 12101-2 certified (600/800 mm versions)

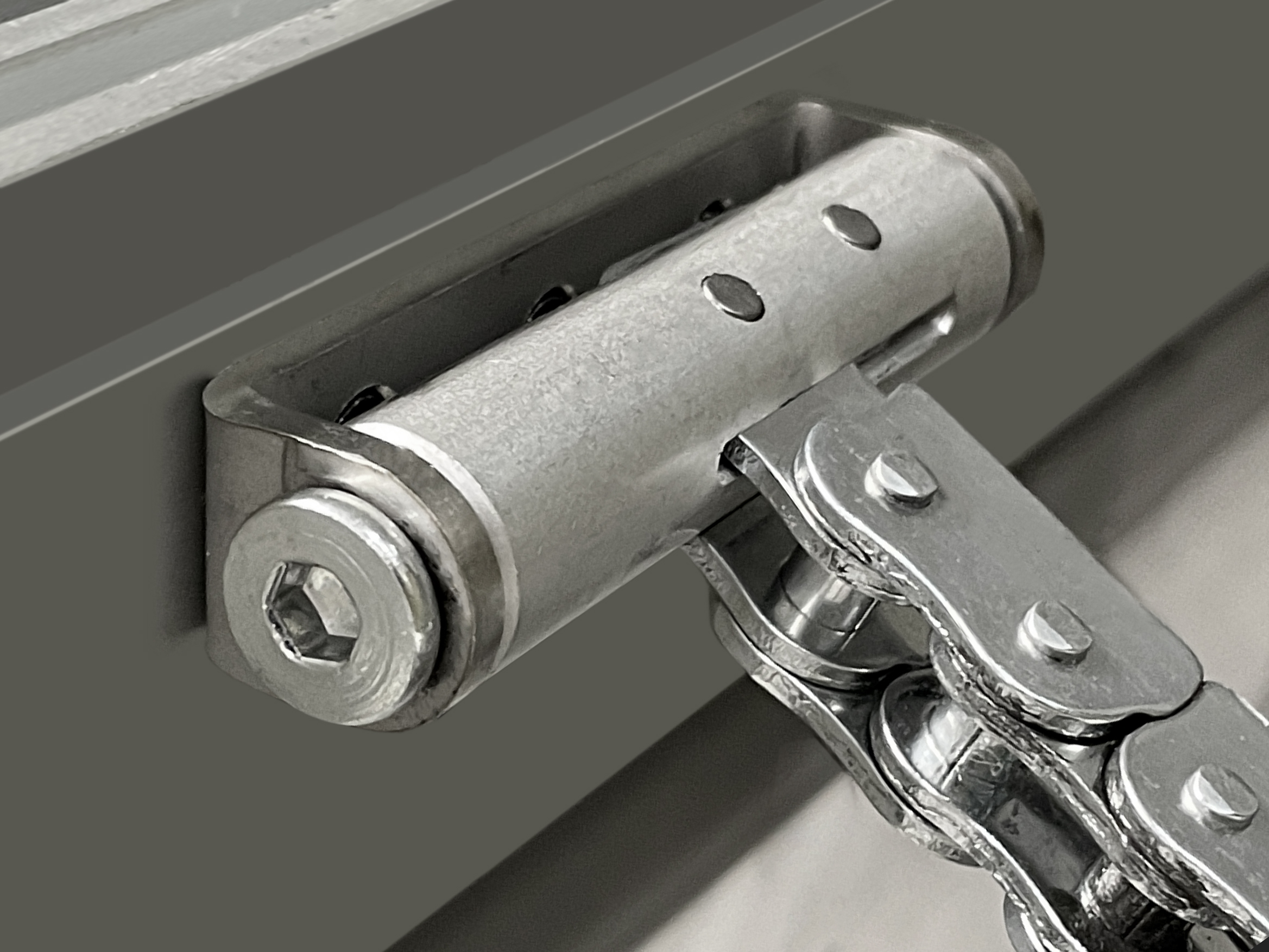

- 🔹 Patented chain load adjustment and terminal system
- 🔹 Gearbox with ball-bearing shafts for heavy-duty performance
- 🔹 Available colors: white, grey, black
Applications
- 🔹 Natural ventilation in industrial buildings
- 🔹 NSHEV systems (EN 12101-2 compliant)
- 🔹 Rooflights and skylights
- 🔹 Large façade windows requiring long-stroke actuation
- 🔹 Synchronous multi-point actuation for wide openings
Need Help?
Use the form below to ask about availability, mounting options, or technical compatibility for the TOPP C50 Synchronous. Our team will guide you toward the best solution for your project.
Technical Specifications – TOPP C50 Synchronous Chain Actuator
|
Technical Characteristics |
C50 Stroke 600 mm |
C50 Stroke 800 mm |
C50 Stroke 1000 mm |
| Applications | Top hung, Skylight, Bottom hung | Top hung, Skylight, Bottom hung | Bottom hung |
| Power voltage | 230V ~ 50Hz | 230V ~ 50Hz | 230V ~ 50Hz |
| Max applicable load in thrust (for single actuator) | 500 N | 300 N | - |
| Max applicable load in traction (for single actuator) | 500 N | 500 N | 500 N |
| Stroke (+/-20mm) | 600 mm | 800 mm | 1000 mm |
| Absorbed current | 0.2 A | 0.2 A | 0.2 A |
| Idle translation speed opening | 9.6 mm/s |
9.6 mm/s (Top hung, Skylight) 13,3 mm/s (Bottom hung) |
13,3 mm/s |
| Idle translation speed closing | 9.6 mm/s |
9.6 mm/s (Top hung, Skylight) 7.5 mm/s (Bottom hung) |
7,5 mm/s |
| Duration of the idle stroke | 63 s |
83 s (Top hung, Skylight) 63 s (Bottom hung) |
75 s |
| Service type | S2 of 4 min | S2 of 4 min | S2 of 4 min |
| Operating temperature | -5°C + 50°C | -5°C + 50°C | -5°C + 50°C |
| Protection Class | IP 30 | IP 30 | IP 30 |
| Possibility of installing double push point on the same window | yes | yes | yes |
| Parallel connection option | yes | yes | yes |
| Overlap from 0 to 50 mm with self-learning | yes | yes | yes |
| Stroke end | electronic | electronic | electronic |
| Dimensions (mm) | 40 x 55 x 811 | 40 x 55 x 911 | 40 x 55 x 1011 |
