SYNCHRONOUS LINEAR ACTUATOR S80
High-Force Linear Actuator with Synchronous Control

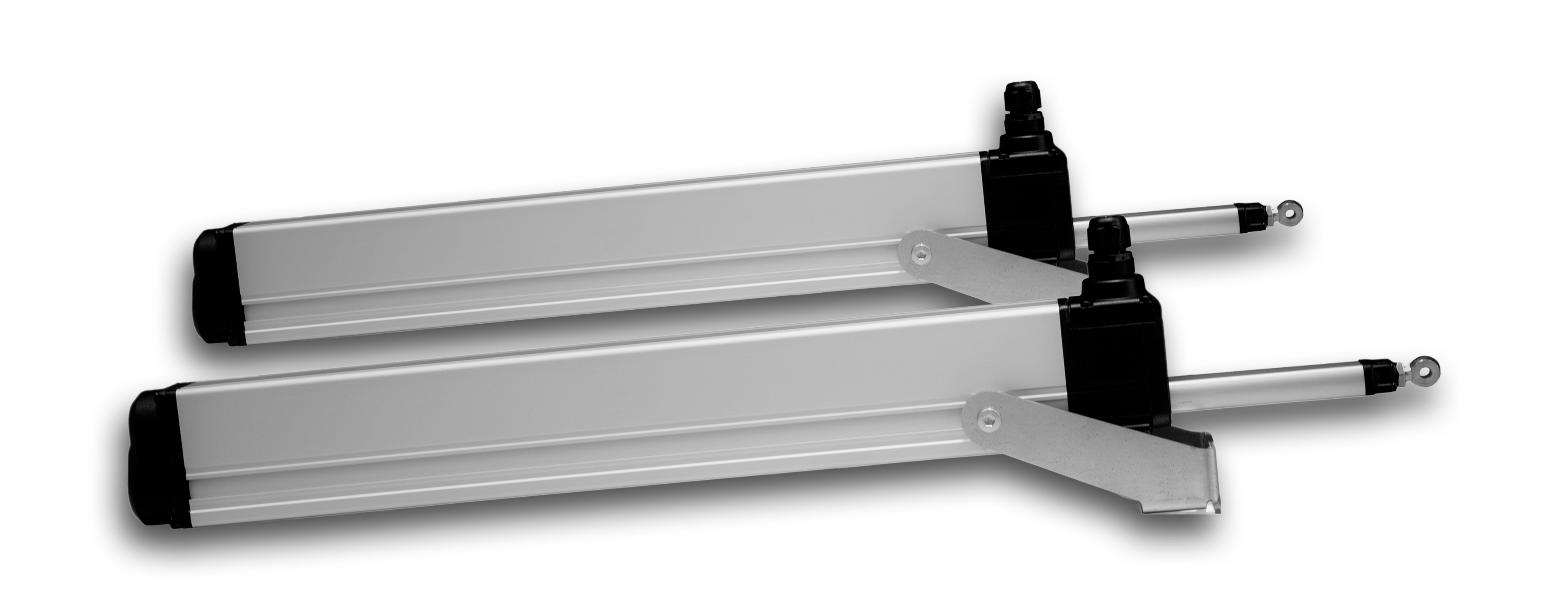

The TOPP S80 Synchronous is a high-performance linear actuator designed for synchronised operation of large domes, skylights, or sun blades. It features an integrated microprocessor system that allows the coordinated operation of two S80 actuators on the same window or rooflight, providing additional support and doubling the operational force up to 1500 N.
With precise stroke adjustment down to the millimeter, the S80 actuator adapts to a wide variety of installation requirements. It is available in both 230V 50Hz and 24V DC power supply options, with selectable strokes of 200, 400, 600, 800, or 1000 mm.
For demanding environments, models with 200 and 400 mm strokes offer IP68 protection, while the 600–1000 mm versions are rated IP65, ensuring superior resistance to dust and water. Constructed with a stainless steel worm screw, the actuator delivers robust performance in external applications.
A dedicated S80 RWA version (200 mm and 400 mm strokes) is available and certified according to the EN 12101-2 standard for smoke and heat exhaust ventilation (SHEV).
With CE marking, synchronous functionality, and durable construction, the TOPP S80 Synchronous actuator is an excellent solution for complex automation projects requiring power, reliability, and precision.
Key Features – TOPP S80 Synchronous
- 🔹 Voltage options: 230V~ 50Hz or 24V DC
- 🔹 Max thrust/traction force: up to 1500 N (dual actuator configuration)
- 🔹 Available strokes: 200, 400, 600, 800, 1000 mm
- 🔹 Microprocessor-controlled synchronization – no external controller needed
- 🔹 Millimetric stroke adjustment
- 🔹 Stainless steel spindle drive
- 🔹 High protection: IP68 (200/400 mm), IP65 (600/800/1000 mm)
- 🔹 Optional RWA version (EN 12101-2 certified)
- 🔹 CE marked device
Applications
- 🔹 Skylights and large domes
- 🔹 Sun blades and façade louvers
- 🔹 Natural ventilation automation
- 🔹 Smoke and Heat Exhaust Ventilation (SHEV) – certified RWA version available
- 🔹 Synchronised automation for large or heavy openings
Need Help?
Use the form below to request technical advice, availability, or a custom configuration of the TOPP S80 Synchronous actuator. Our team will assist you in selecting the best solution for your project.
Technical Specifications – TOPP S80 Synchronous Actuator
| Technical Characteristics | S80 230V |
S80 24V |
| Power voltage | 230V~50Hz | 24V |
| Max applicable load in thrust | 800 N | 800 N |
| Max applicable load in traction | 800 N | 800 N |
| Max applicable load in thrust of 2 synchronized S80 | 1500N | 1500N |
| Max applicable load in traction of 2 synchronized S80 | 1500N | 1500N |
| Strokes | 200 - 400 - 600 - 800 - 1000 mm | 200 - 400 - 600 - 800 - 1000 mm |
| Absorbed current | 0,2 A | 1 A |
| Idle translation speed | 6,5 mm/s | 6,5 mm/s |
| Double electrical insulation | yes | yes |
| Service type | S2 3min | S2 3min |
| Operating temperature | -20°C + 60°C | -20°C + 60°C |
| Protection Class |
IP68 (Strokes 200-400) IP65 (Strokes 600-800-1000) |
IP68 (Strokes 200-400) IP65 (Strokes 600-800-1000) |
| Parallel connection option | yes | yes |
| Synchronous operation of 2 S80 on the same window | yes | yes |
| Stroke end | electronic | electronic |
