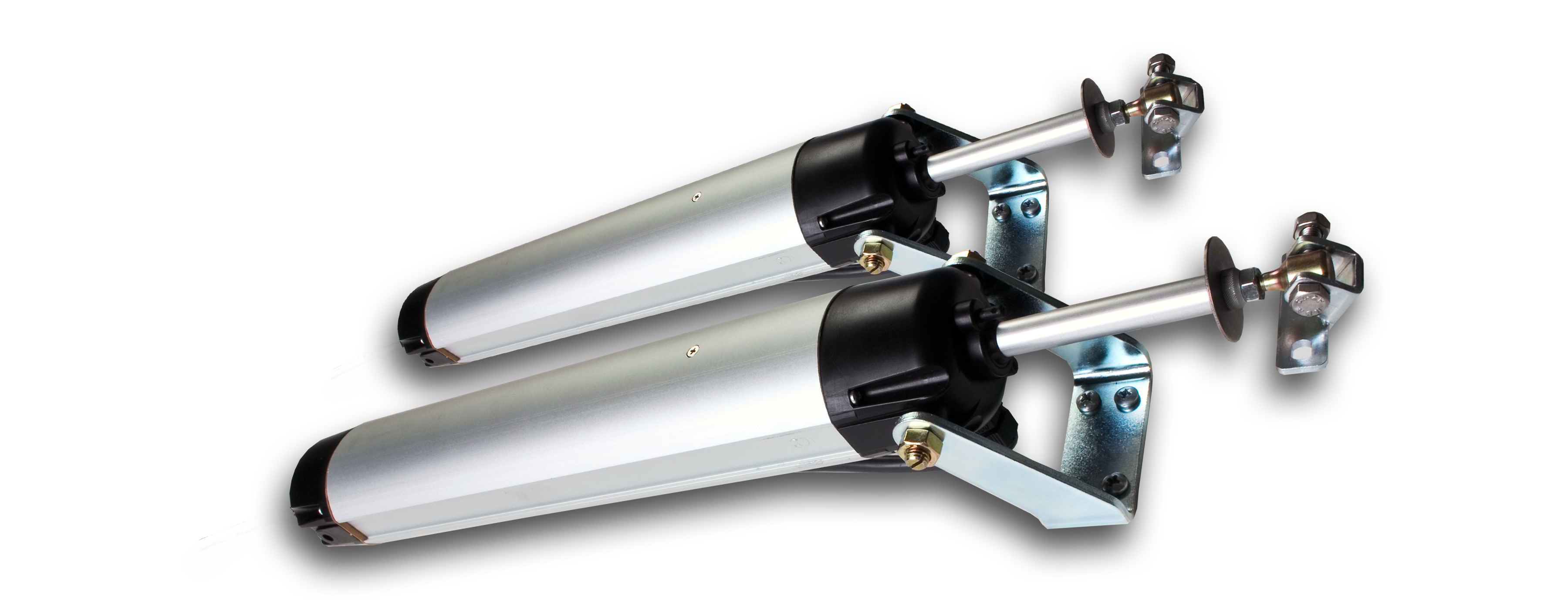

TANDEM LINEAR ACTUATOR MAX
Reliable Linear Actuators for Tandem Installation
The UCS MAX Tandem is a robust electric spindle actuator system designed for projects requiring additional force, stability, and enhanced safety. Built with efficiency and durability in mind, the actuator features an elegant anodized aluminum body in either silver or dark brown, ideal for high-end architectural integration.
Available in stroke options of 180 mm, 300 mm, or 500 mm, the UCS MAX offers a powerful thrust of up to 450 N (350 N for 500 mm stroke). With an IP65 protection rating, it is perfectly suited for demanding environments that require resistance to dust and moisture.

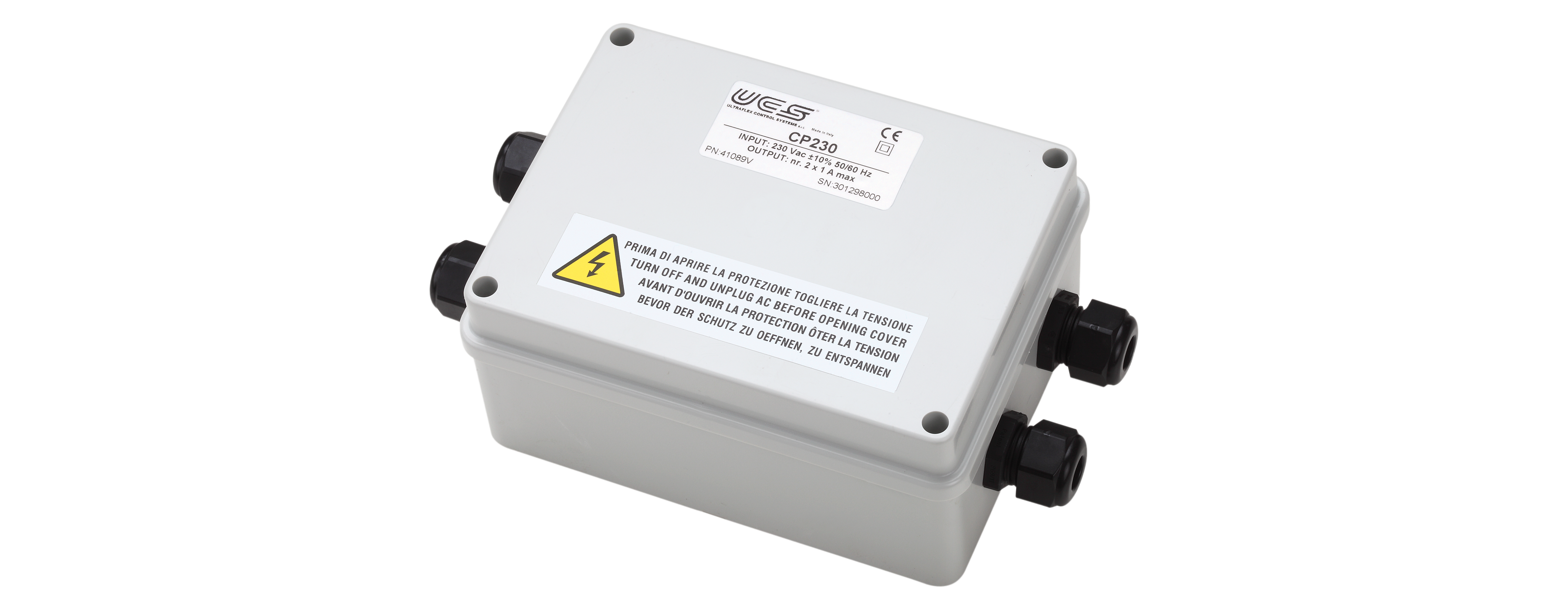

The MAX actuators can be installed in a tandem configuration using the CP230 control unit, allowing two actuators to operate simultaneously on one window. In case of a malfunction, the control unit automatically halts the second actuator, ensuring safe operation without compromising structural integrity. Please note: the MAX tandem system ensures dual control but does not provide full electronic synchronization.
Installation is simplified by the availability of sliding or fixed mounting options, while integrated microswitches and thermal protection ensure accurate and reliable performance. Whether for skylights, heavy windows, or special ventilation openings, the UCS MAX Tandem is a reliable solution combining performance, safety, and modern design.
Key Features – UCS MAX Tandem
- 🔹 Voltage: 230V AC
- 🔹 Available strokes: 180, 300, 500 mm
- 🔹 Max force: 450 N (350 N for 500 mm stroke)
- 🔹 IP65 protection class – high resistance to moisture and dust
- 🔹 Microswitches and thermal protection built-in
- 🔹 Compatible with CP230 control unit for tandem operation
- 🔹 Aluminum housing – anodized silver or dark brown
- 🔹 Mounting options: sliding or fixed
Applications
- 🔹 Skylights and top-hung windows
- 🔹 Heavy facade windows requiring dual drive support
- 🔹 Industrial and commercial natural ventilation
- 🔹 Tandem-controlled openings for added force and safety
Need Help?
Use the form below to request technical guidance, availability, or custom configuration options for the UCS MAX Tandem actuator system. Our team will support you in selecting the best solution for your window automation project.
Technical Specifications – UCS MAX Tandem Actuator
| Technical Characteristics | MAX 230V |
| Power voltage | 230V~50Hz |
| Electrical connection | 3 wires + earth |
| Max applicable load in thrust and traction of 2 actuators (Strokes 180-300mm) | ~ 800 N |
| Max applicable load in thrust and traction of 2 actuators (Stroke 500mm) | ~ 600 N |
| Strokes | 180 -300 -500 mm |
| Absorbed current | 0,7 A |
| Full load translation speed | ~20 mm/s |
| Service type | S2 4min |
| Operating temperature | -10°C + 50°C |
| Protection Class | IP 65 |
| Parallel connection option | yes |
| Possibility of installing double push point on the same window | only with UNIT CP230 |
| Stroke end | micro switches |
| Safety stop | thermic |
