SYNCHRONOUS RACK ACTUATOR T-RACK
Heavy-Duty Rack Actuator with Electronic Synchronization
The UCS Synchro T-RACK is a powerful and versatile electric rack actuator system engineered for operating large and heavy windows, domes, or skylights. Designed for demanding architectural and industrial applications, it features a rugged design, easy installation, and the option to link up to four actuators for synchronized operation.
Each actuator delivers up to 1000 N of pushing/pulling force, and in a 4-unit synchronized setup, the system reaches an impressive 4000 N. Available in both 230V AC and 24V DC versions, it is suitable for a wide range of automation scenarios, including SHEV systems (EN 12101-2 compliant 24V RWA version).
UCS Synchro T-RACK supports stroke lengths of 350 mm, 550 mm, 750 mm, 1000 mm, and upon request, a 1200 mm stroke is also available. Optional L-SIGNAL version provides open/close feedback signals for precise automation and integration.

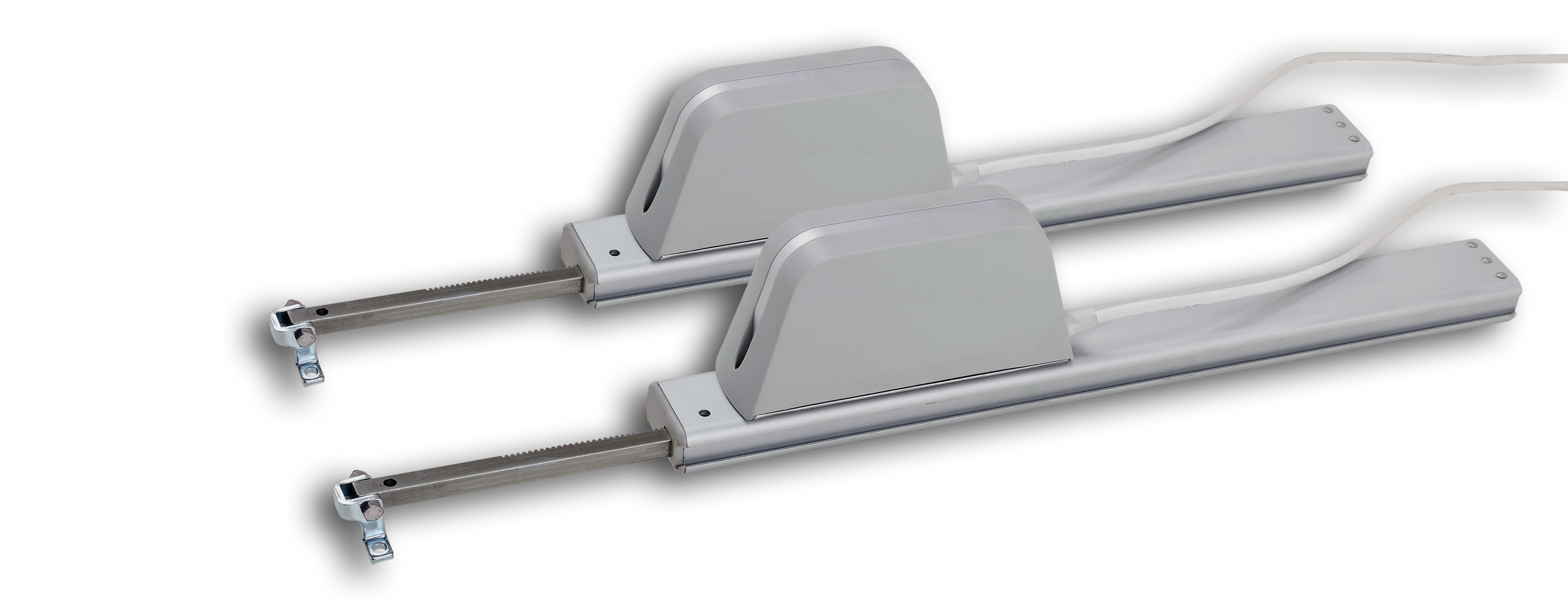

The system allows both mechanical tandem configuration (via transmission rod) and electronic synchronization between multiple actuators. The electronic sync version comes with built-in control boardsโno external controller needed.
Key Features โ UCS Synchro T-RACK
- ๐น Voltage: 230V AC or 24V DC
- ๐น Max force per actuator: 1000 N
- ๐น Max synchronized system force: up to 4000 N (4 actuators)
- ๐น Stroke lengths: 350, 550, 750, 1000 mm (1200 mm on request)
- ๐น EN 12101-2 compliant (24V RWA version)
- ๐น Built-in synchronization board โ no external controller required
- ๐น Optional L-SIGNAL version with position feedback
- ๐น Mounting: sliding or fixed point brackets
Applications
- ๐น Smoke and Heat Exhaust Ventilation (SHEV) systems
- ๐น Skylights, domes, and top-hung windows
- ๐น Industrial and commercial facade openings
- ๐น Projects requiring multiple push points with high precision
Need Help?
Use the form below to configure your UCS Synchro T-RACK actuator system. Whether you're planning a synchronized multi-point setup or a certified smoke ventilation project, our team is ready to assist you.
Technical Specifications โ UCS Synchro T-RACK Actuator
|
Technical Characteristics |
T-RACK 230V | T-RACK 24V | SYNCHRO T-RACK 24V |
| Power voltage | 230V ~ 50Hz | 24 Vdc ยฑ 10% | 24 Vdc ยฑ 10% |
| Electrical connection | 3 wires + earth | 2 wires + signal | 5 wires |
| Recommended applicable load in thrust | 1000 N | 1000 N | 1000 N |
| Recommended applicable load in traction | 1000 N | 1000 N | 1000 N |
| Max applicable load (MASTER + SLAVE) | 1000 N | 1000 N | 1000 N |
| Max applicable load (MASTER + MASTER) | 2000 N | 2000 N | 2000 N |
| Max applicable load (4 X SYN T-RACK 24V) | - | - | ~4000 N |
| Strokes | 350,550,750,1000 mm | 350,550,750,1000 mm | 350,550,750,1000 mm |
| Absorbed current | 0,32 A | 1,5 A | 1,5 A |
| Idle translation speed | ~12,5 mm/s | ~12,5 mm/s | ~12,5 mm/s |
| Service type | S2 of 4 min | S2 of 4 min | S2 of 4 min |
| Protection Class | IP65 | IP65 | IP65 |
| Possibility of installing double push point on the same window | transmission rod | transmission rod | electronic |
| Parallel connection option | yes | yes | yes |
| Open/close feedback signal | - | yes | - |
| Stroke end | electronic | electronic | electronic |
| Safety stop | electronic | electronic | electronic |
| Color | silver | silver | silver |
