SYNCHRONOUS RACK ACTUATOR T50S

High-Force Linear Actuator with Smart Synchronization

The TOPP T50S is a synchronous rack actuator designed for applications requiring increased force, stability, and dual-point window support. Ideal for wide or heavy top-hung windows, the T50S features a robust mechanical structure combined with integrated electronic synchronization, allowing simultaneous operation of two actuators without the need for an external controller.

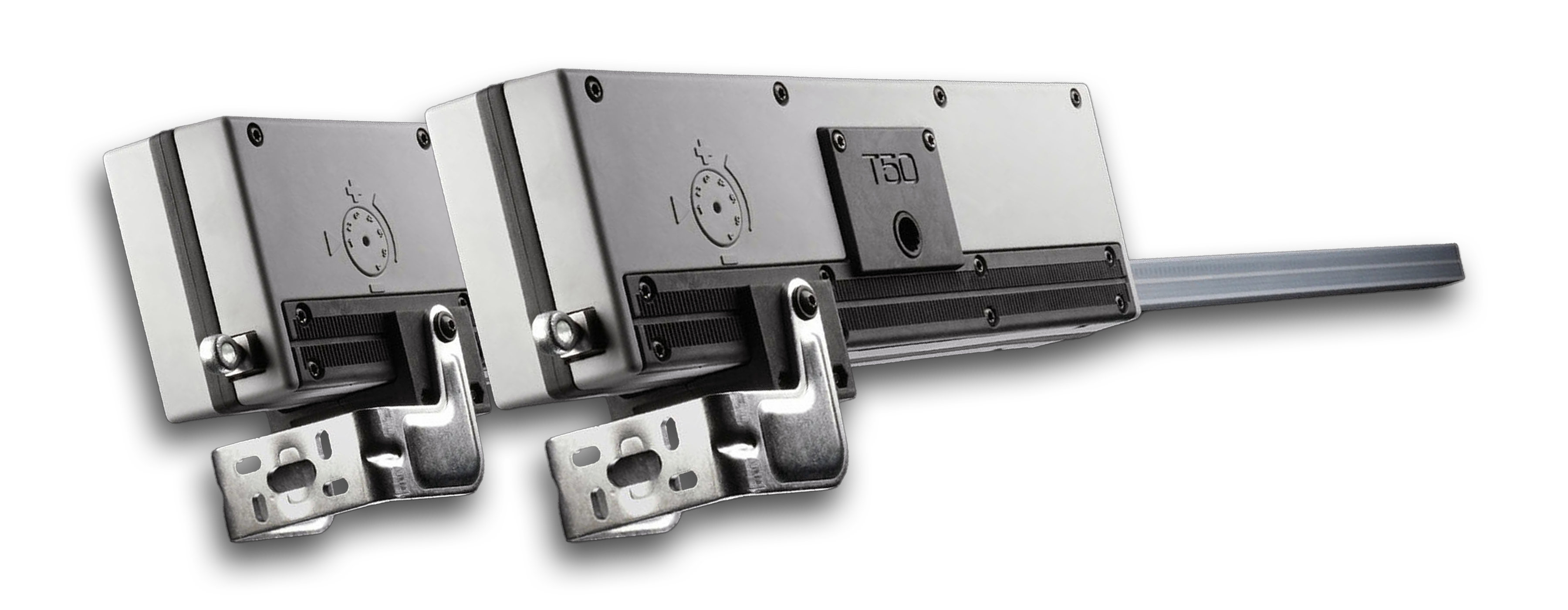

Operating at 24V DC, the T50S delivers up to 800 N thrust force when used in a synchronized configuration. The stroke is adjustable up to 1000 mm with increments of ~50 mm, allowing flexible adaptation to different window sizes. The actuator can be connected to a second unit using an internal synchronization system, ensuring perfectly balanced movement without physical linkage.

Thanks to its IP55 protection rating and self-aligning sliding brackets, the actuator is easy to install and suited for use in both commercial and industrial ventilation systems. The T50S is CE marked and available with accessories for various mounting scenarios.

Key Features – TOPP T50S

• 🔹 Voltage options: 230V~ 50Hz or 24V DC
• 🔹 Max force: up to 800 N (synchronized)

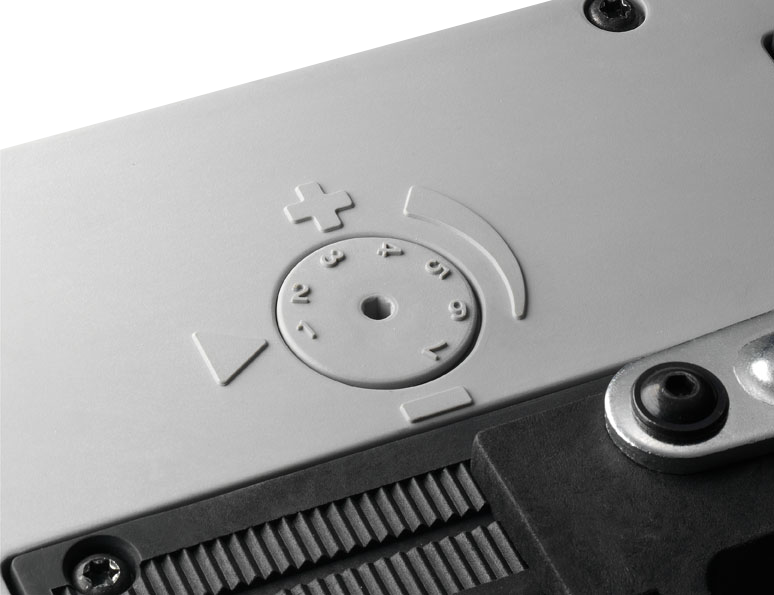

• 🔹 Stroke: adjustable up to 1000 mm (~50 mm steps)
• 🔹 Integrated electronic synchronization – no control unit required
• 🔹 IP55 rated – resistant to dust and moisture

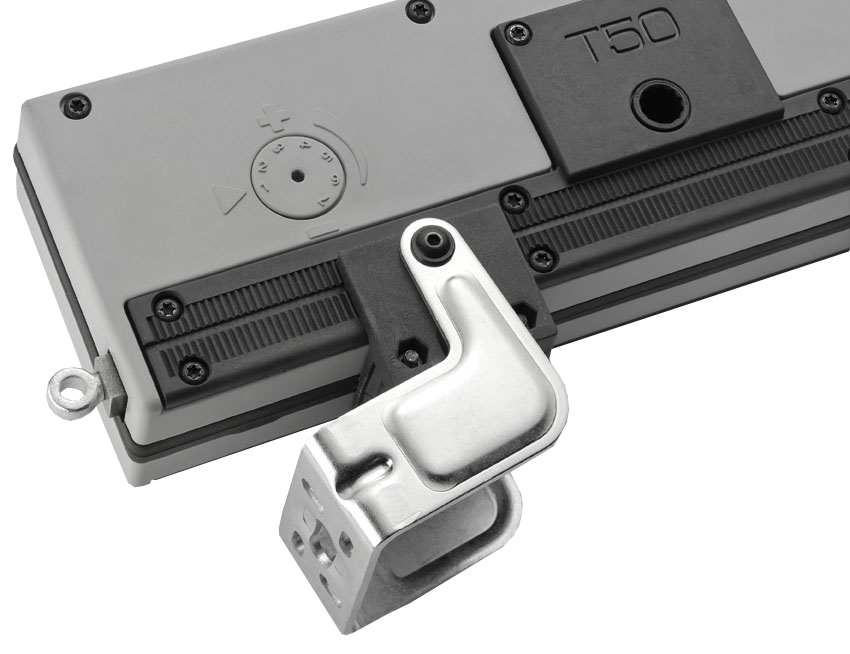

• 🔹 Self-aligning sliding brackets – easy and flexible installation
• 🔹 CE certified device

Applications

• 🔹 Wide or heavy top-hung windows
• 🔹 Natural ventilation in commercial and industrial buildings
• 🔹 Synchronized multi-point actuators

Need Help?

Use the form below to request a synchronized configuration of the TOPP T50S actuator or to get technical assistance. Our team will provide expert guidance for your application.
