Compact and Efficient Locking Drives for Modern Window Automation
The Locking Actuator category includes advanced linear locking devices designed to enhance the performance of electric window automation systems. These actuators ensure secure closure and airtight sealing by locking the windowโs multipoint hardware. When used in combination with chain actuators, they provide the ultimate solution for natural ventilation, energy efficiency, and smoke extraction systems.
Two standout models include the TOPP M00 and UCS E-LOCK โ both compact yet powerful, with high operational force, precise control, and integration-ready features for modern BMS environments.
Discreet and Reliable Multi-Point Locking Solutions

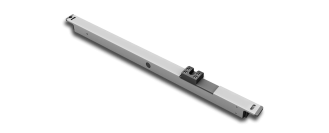

The TOPP M00 is a slim and silent actuator for multi-point locking systems. With a 600 N force and adjustable stroke of 18 or 36 mm, it fits concealed into window frames and works in tandem with actuators like the TOPP C20 or A90. Certified to EN 12101-2, it is ideal for use in smoke and heat exhaust systems.

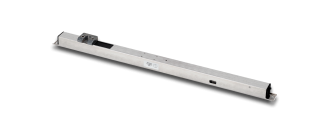

The UCS E-LOCK is a robust 24V actuator housed in a stainless steel body, engineered for high-performance locking in sync with UCS chain actuators (VEGA, NANO, QUASAR series). It offers multiple stroke settings, reversible locking direction, and can be paired with either short or long fork kits depending on the window profile. Emergency unlocking and BMS-ready versions make it ideal for smart buildings and critical applications.
Operation Logic
The actuator initiates the unlocking process prior to window opening and ensures the locking cycle is completed after full closure. This is controlled either by time delay (dip switch) or feedback signal (microswitch, magnetic sensor, or actuator F-Signal).
Key Features โ Locking Actuators
- ๐น 24V DC power supply
- ๐น Max locking force up to 600 N
- ๐น Compact form factor โ suitable for concealed mounting
- ๐น Adjustable strokes and locking direction
- ๐น Stainless steel or die-cast aluminum casing
- ๐น Emergency manual release
- ๐น Compatible with BMS systems (BMSLine actuators)
- ๐น Versions certified according to EN 12101-2 for SHEV
Applications
- ๐น Multi-point locking windows and faรงades
- ๐น Smoke and heat exhaust ventilation systems (SHEV)
- ๐น Smart building environments with BMS control
- ๐น Energy-efficient window systems
