LOCKING ACTUATOR M00

Discreet and Powerful Multi-Point Locking System

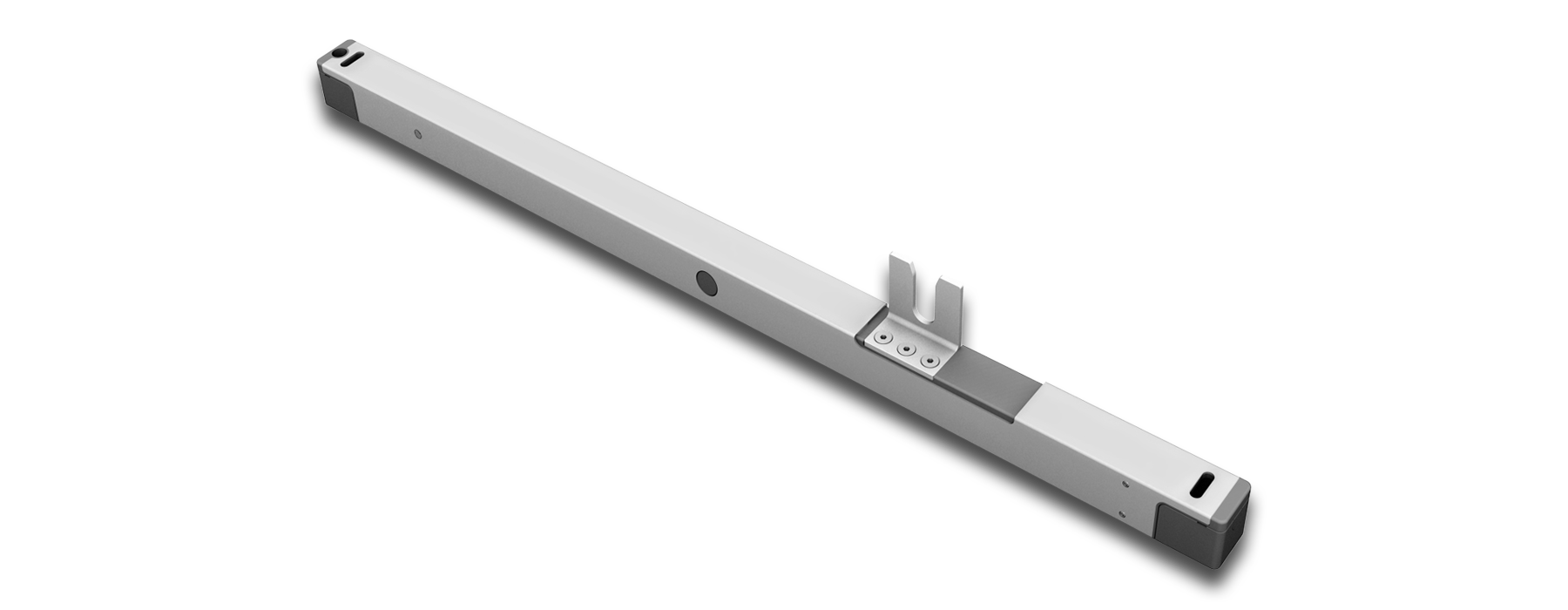

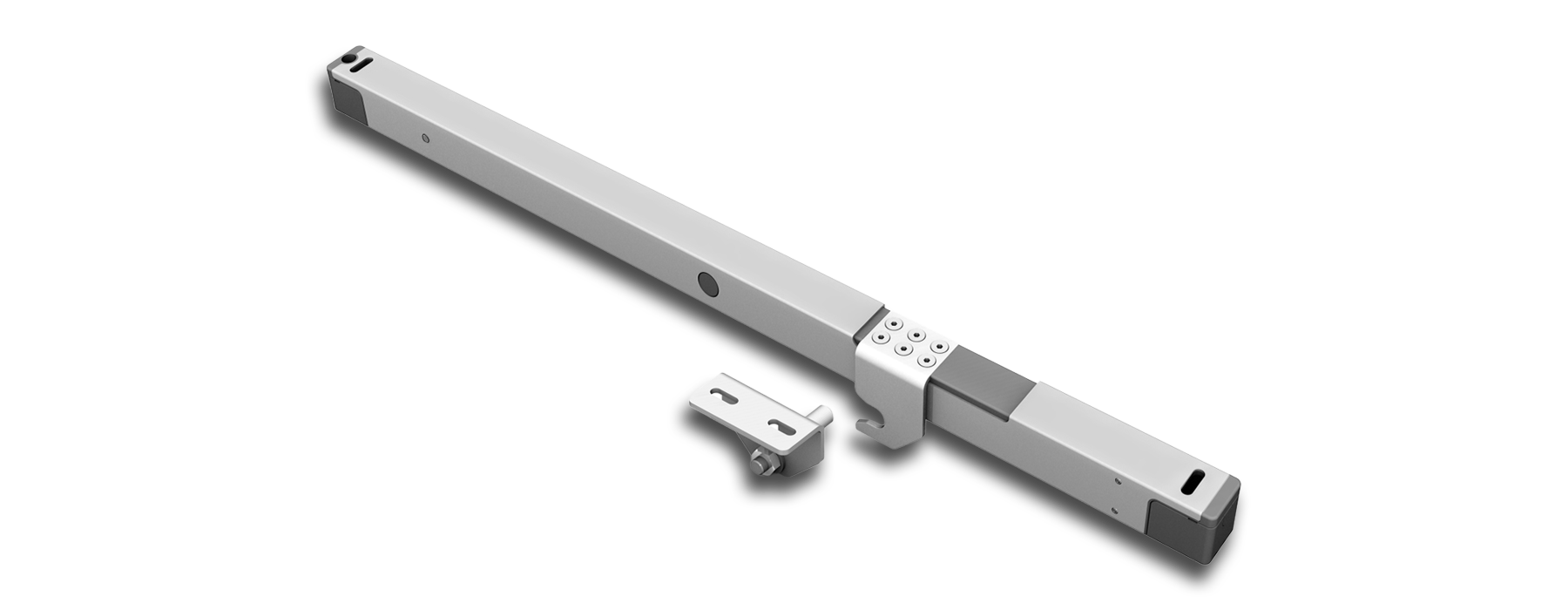

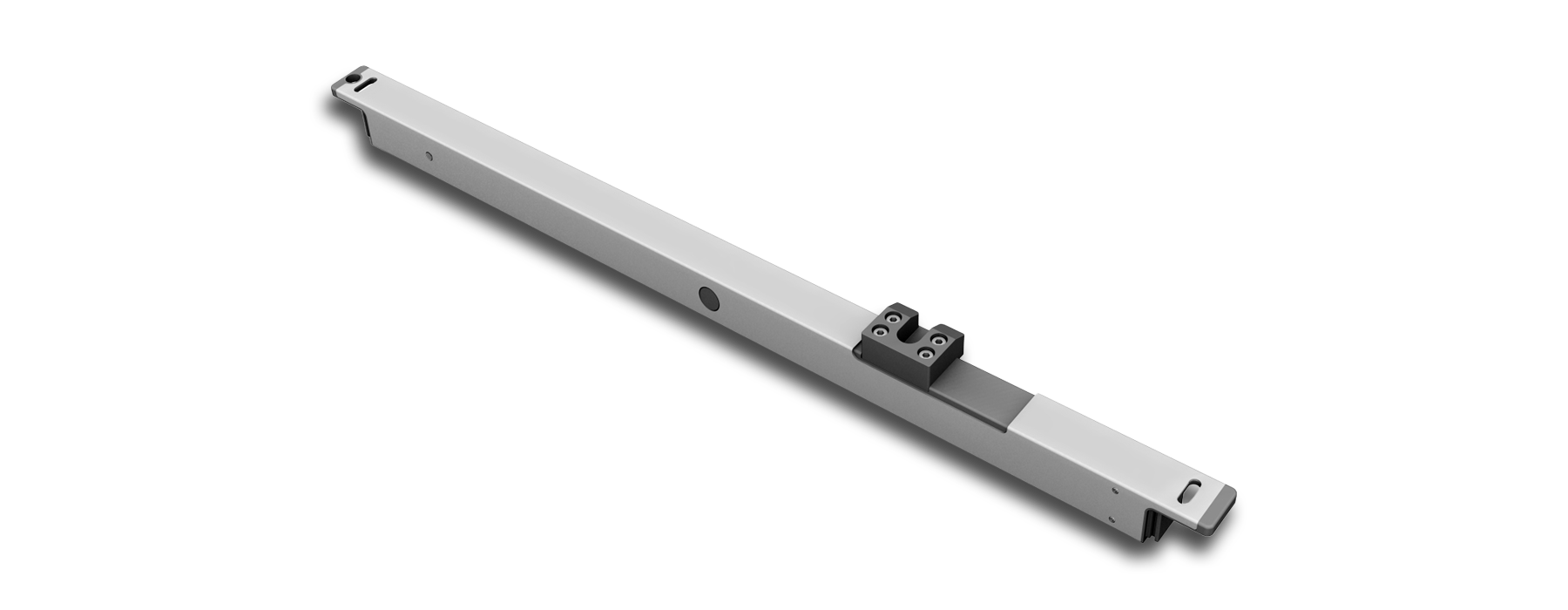

The TOPP M00 electric actuator is a highly compact solution specifically engineered for driving multi-point locking mechanisms in windows. Designed for seamless integration, the actuator can be concealed inside the window profile or surface-mounted on the frame, making it an ideal fit for both new and retrofit projects.

Operating at 24V DC, the M00 delivers a maximum locking force of 600 N. It allows for adjustable stroke lengths of 18 mm or 36 mm, enabling the precise horizontal movement of locking pins within the frame’s hardware. This ensures hermetic multi-point sealing for enhanced airtightness, thermal insulation, and safety.

The M00 actuator can be combined with TOPP chain actuators such as the C20 to complete a synchronized opening and locking system. Thanks to its compact size and high-performance output, it is ideal for smoke and heat exhaust ventilation systems (SHEV), and is certified according to EN 12101-2.

Key Features – TOPP M00 Actuator

• 🔹 Power supply: 24V DC
• 🔹 Max. force: 600 N
• 🔹 Locking stroke: 18 mm or 36 mm (adjustable)
• 🔹 Compatible with multi-point locking hardware
• 🔹 Speed: 1.0 mm/s at max load
• 🔹 Can be paired with chain actuators (e.g., TOPP C20)
• 🔹 Compact and discreet – suitable for concealed installation
• 🔹 Certified to EN 12101-2 for smoke ventilation systems

Applications

• 🔹 Multi-point locking windows and façade systems
• 🔹 Smoke and heat exhaust ventilation (NSHEV / SHEV)
• 🔹 Energy-efficient airtight window systems
• 🔹 Smart buildings and BMS integration
